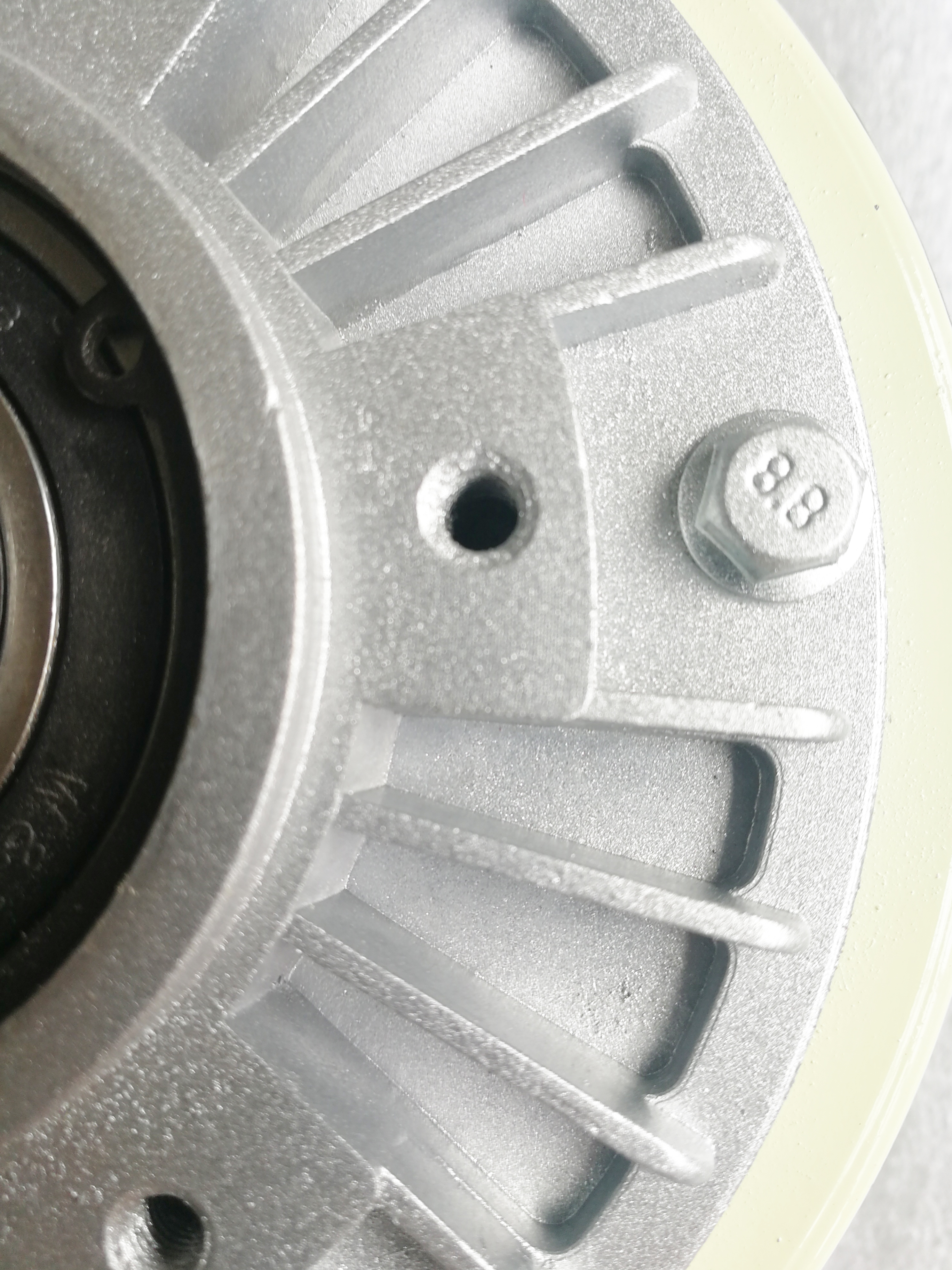

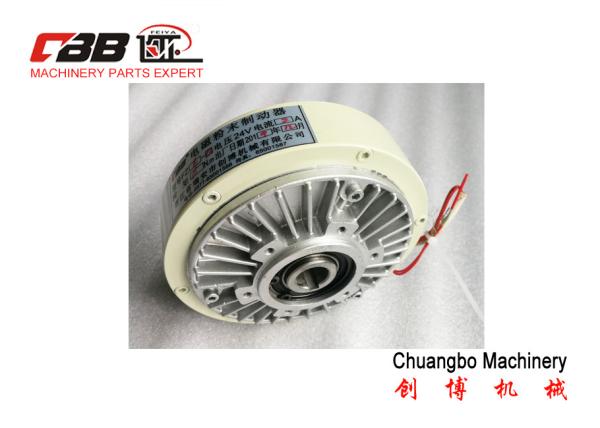

Hollow Type 0.6kg Magnetic Powder Brake 6N.M Tension Control 24V
Input FZ6K
Introduction
Magnetic brake can transmit torque based on electromagnetic theory
and the use of magnetic powder. It has advantages of fast response,
simple structure, no pollution, no noise, no shock and vibration,
energy-saving and so on. It is a versatile, superior performance of
automatic control components. Magnetic brake is used to drive
machinery, such as loading and brake dynamometer.
Featured advantages
1. Fast response. Instant and fast reaction to commands.
2. Costly. Excellent heat dissipation and quality materials mean long life,
even under high frequency and high tempreture conditions.
3. Easy to install. No dust brush is needed, and operation is simper and easier.
4. No need adjust of the motor. No need adjustment for the motor, and once it is installed only very minor adjustments are needed.
5. Adjustable torque. Torque levels can be increased or decreased by changing the
current, making it suitable for a variety of applications.
Application
Paper making machine
Printing machine
Packaging machine
Plastics machine
Rubber machine
Textile machine
Other machines
Parameters
| Model | Torque/N.m | Current/A | Voltage/V | Speed/rpm | Weight/kg |
| FZ6K | 6 | 0.80 | 24 | 1000 | 3.0 |
| FZ12K | 12 | 1.00 | 24 | 1000 | 4.5 |
| FZ25K | 25 | 1.50 | 24 | 1000 | 7.5 |
| FZ50K | 50 | 1.80 | 24 | 1000 | 12.0 |
| FZ100K | 100 | 2.00 | 24 | 800 | 20.5 |
| FZ200K | 200 | 2.80 | 24 | 800 | 30.0 |
| FZ400K | 400 | 3.00 | 24 | 800 | 55.0 |
| Model | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | 6-S(mm) | d(mm) | t(mm) | Magnetic powder(g) |
| FZ6K | 130 | 62 | 52 | 3 | 57 | 60 | M4 | 16 | 6 | 10 |
| FZ12K | 150 | 82 | 65 | 4 | 68 | 72 | M5 | 20 | 6 | 20 |
| FZ25K | 182 | 110 | 90 | 4 | 80 | 84 | M6 | 25 | 8 | 30 |
| FZ50K | 219 | 130 | 110 | 5 | 90 | 95 | M6 | 30 | 8 | 60 |
| FZ100K | 260 | 140 | 120 | 5 | 105 | 110 | M8 | 35 | 10 | 110 |
| FZ200K | 335 | 170 | 150 | 5 | 115 | 120 | M10 | 45 | 14 | 180 |
| FZ400K | 398 | 200 | 180 | 6 | 135 | 140 | M14 | 60 | 18 | 300 |
Five Core strengths:
1. The first domestic independent R & D manufacturer and 25 years
of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can
be customized.
5. Selected materials, high-tech treatment, up to the international
standard test.
About CBB Ruian Chuangbo
Ruian Chuangbo Machinery Co., Ltd. established in 1995, is
specialized in manufacturing of machinery parts. The company has
advanced production level and scientific research equipment, the
products are matched with printing, packaging, plastics, paper,
textile, pharmaceutical machinery and other industries. The company
has been granted with independent import and export rights, the
products sold to allover the country and export to more than thirty
countries and regions, such as: India, Pakistan, Israel, Russia,
Spain and so on
