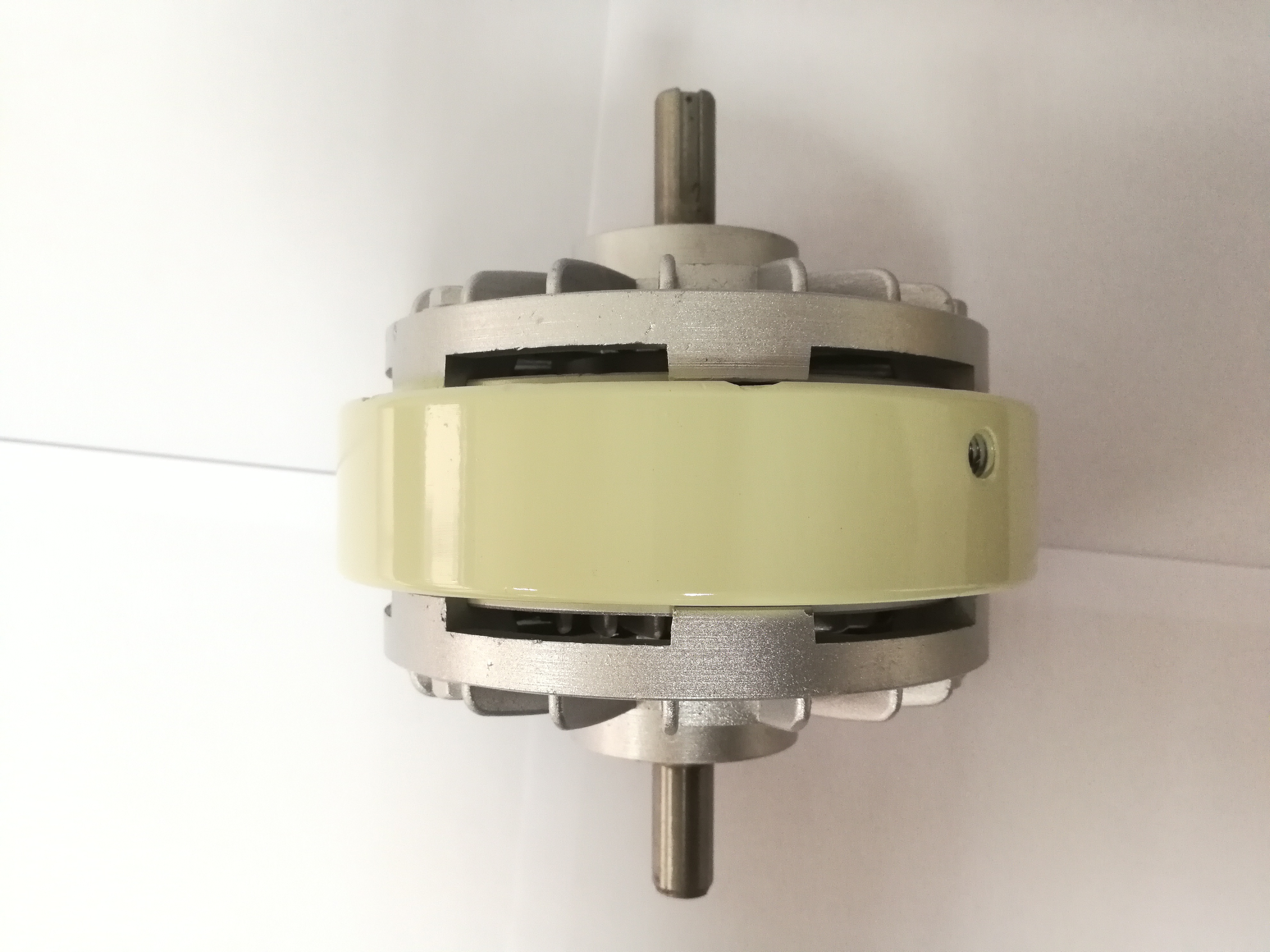

Shaft Type Electromagnetic Powder Clutch FL6A Precise Tension
Control For Rewind
Introduction
Electromagnetic Magnetic clutch can transmit torque based on the magnetic powder.
It is used to drive machinery, such as loading and brake
dynamometer. It is widely used in rewinding tension control in
papermaking, printing, packaging, plastics, rubber, glass, textile,
printing and dyeing, wire and cable, metallurgical and other
machine and industrial.
Details for clutch
| Type | Shaft type magnetic powder clutch |
| Model | FL6a |
| Torque | 6NM/0.6kg |
| Input | DC24V |
| Current | 0.8A |
| Type | Powder |
| Warranty | 1 year |
Application
- Rewinding tension control in Papermaking machine
- Rewinding tension control in Printing machine
- Rewinding tension control in Packaging machine
- Rewinding tension control in Slitting machine
- Rewinding tension control in Film machine
- Other machine
Advantages
1) High-precision torque control
Under control by automatic tension controller, the torque control
can be in high precision
2) Fast response
Torque transmitted by magnetic powder, means instant reaction to commands
3) Superior durability, long life
High quality magnetic powder and high-precision machining can make
the life long
4) The stability of fixed superior torque characteristics
Powder transmitted the torque, stable current means stable torque
5) Continuous operation of the use of sliding
Continuous current input of the clutch bring continuous slidding
output
6) Ink sleek, non-shock
Electricity element, smoothly output
7) Suitable for high-frequency operation
When there is current, there is torque
Parameters
| Model | Torque/N.m | Current/A | Voltage/V | Speed/rpm | Weight/kg |
| FL6A | 6 | 0.80 | 24 | 1400 | 4.0 |
| FL12A | 12 | 1.00 | 24 | 1400 | 6.5 |
| FL25A | 25 | 1.50 | 24 | 1400 | 9.5 |
| FL50A | 50 | 1.80 | 24 | 1400 | 15.0 |
| FL100A | 100 | 2.00 | 24 | 1000 | 30.0 |
| FL200A | 200 | 2.50 | 24 | 1000 | 55.0 |
| FL400A | 400 | 3.00 | 24 | 1000 | 80.0 |
| Model | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | 6-S(mm) | d(mm) | t(mm) | Magnetic powder(g) |
| FL6A | 130 | 62 | 44 | 25 | 10 | 72 | M4 | 12 | 4 | 10 |
| FL12A | 157 | 62 | 50 | 30 | 15 | 93 | M5 | 16 | 5 | 20 |
| FL25A | 182 | 78 | 58 | 40 | 16 | 102 | M6 | 20 | 6 | 30 |
| FL50A | 220 | 100 | 75 | 50 | 20 | 112 | M6 | 25 | 8 | 60 |
| FL100A | 290 | 120 | 90 | 65 | 25 | 160 | M8 | 30 | 8 | 110 |
| FL200A | 335 | 140 | 110 | 70 | 30 | 190 | M10 | 35 | 10 | 180 |
| FL400A | 398 | 200 | 130 | 99 | 35 | 221 | M12 | 45 | 14 | 300 |
Why choose CBB Chuangbo
A. Reliable supplier in China
Established in 1995, CBB Chuangbo has been in machinery parts for
25 years, now we are biggest manufacturer of machinery parts in
East China.
B. Hight quality material
High quality of steel shell for the brake and imported powder for
longer life of the brake.
C. Cooling treatment
Insider there is a small cooling fan inside the brake, cooling the
tempreture and make the brake stable.
D. Quality control
We have the quality control system during the whole production
fromthe very beginning to the end and our principle is to make sure
each shaft is qualified.
Shipping
1.We delivery packages within 3~7 working days after payment
received.
2.Express via DHL,FedEx,TNT,EMS,UPS,etc. If you need to ship by
your way,please contact with us.
3.All our goods are strictly inspected and strong packed before
shipping.To avoid package damaged caused by transportation.When you
sign for the package, be sure to check to see if it is damaged or
not. If damaged, please take pictures and contact us at the first
time.
