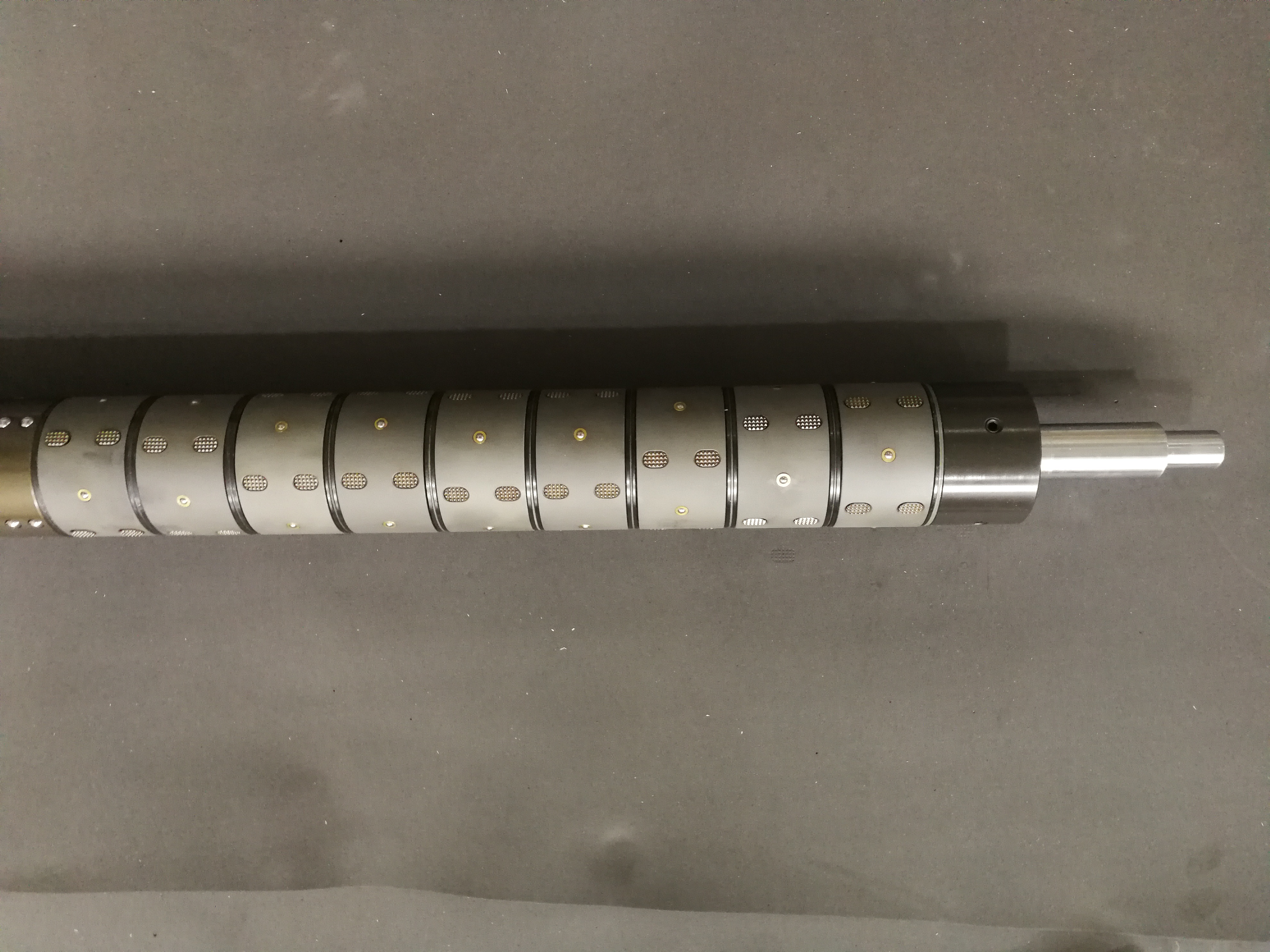

Nickel Plated Steel Material Slitting Machine Differential Shaft
Width 49
Charateristic
Air differential shaft is applied mainly to wind shaft, or unwind
shaft in special occasions.
The body of the air differential shaft is made from chrome-plate
steel. The friction plate can be made from polyurethane,
polyethylene, or rubber to max tension required.
Differential shaft is mainly used for sub-section equipment that
has high requirement on final products and fast speed.The
differential ring on it can slip independently. Controlled by the
tension system, let the compressed air which has a certain pressure
come to axle core, so that it will produce friction torque between
the friction parts and the slip ring, and realize constant tension
coiling and it will help solve the unwinding problems and material
damages caused by uneven thickness and tension of each roll
material.
Technical parameter of Air Differential Rewinding Core Shafts
| Applicable roll inside diameter (mm) | 50.8 | 70 | 76.2 | 152.4 |
| Non-swell diameter (mm) | 50 | 69 | 75 | 151.5 |
| Weight journals not included(kg×m) | 12 | 27 | 32 | 61 |
| Maximum torque (Nm/m) | 21 | 29 | 32 | 64 |
Feature of Air Differential Rewinding Core Shafts
- Difference in material thickness often arises when unwinding
plastic films or other material. In the process of constant
winding, this difference can lead to obvious discrepancy in outside
diameter of roll, and slight discrepancy in winding torque under
this situation.
- After some winding rotation, some rolls may become very tight, and
meanwhile, some other rolls may start to loosen, leasing to quality
decline in product eventually.
- Our differential air shaft with slipping friction can ensure the
highest winding quality, and by keeping proper tension on all rolls
throughout the winding operation, materials will not show any
problem.
- It works under the theory that friction rings slip constantly in
center of air shaft, and to keep same tension, some rings slip
faster than others. So tension of each roll can be controlled
accurately, and permanent tension can also be gained to guarantee
the quality of roll.
- According to different roll diameters, to control air pressure of
rubber tube and to stable the tension, a constant air pressure
source kept by rotary joint is required.
Structure
Central air pressure differential shaft are made of core roll,
differential ring, rubber tube, friction parts, sealing rings.
The body of the air differential shaft is made from chrome-plate
steel or hard anodized aluminum. The friction plate can be made
from polyurethane, polyethylene, or rubber to max tension required.
According to the drawing, we can make steel shaft head with
different sizes.
Application
A.The applicable Machine
It is used for slitting machine,coating machine,cutting
machine,printing machine,compounding machine,paper making
machine,bag makeing machine, embossing machine and so on .It can
greatly improve the working efficiency and the quality of products.
B.The applicable Material
Differential air shaft has been widely used in plastic film
including electronic, capacitor, battery film, plastic wrap,
packaging, composite film, metal foil such as copper foil and
aluminum foil, paper and pvc sheet.
Size of differential shaft
Normal size of differential shaft and the rings
| 3 inch Differential shaft ring size |
| Outside diameter | Φ75.5mm |
| The maximum action diameter | Φ78mm |
| Standard width | 15,20,25,30,35,40,50mm |
| Standard internal diamete | Φ50,Φ55mm, Φ60mm |
| 6 inch Differential shaft ring size |
| Outside diameter | Φ150.5mm |
| The maximum action diameter | Φ154mm |
| Standard width | 15,20,25,30,35,40,50mm |
| Standard internal diamete | Φ50,Φ55mm, Φ60mm |
The advantages of CBB differential
A. Trustworthy company and long history
Established in 1995, CBB Ruian Chuangbo is one of the biggest
machinery spare parts manufacturer in East China.
B. Hight quality material for the core shaft and spare parts
The body of the differential shaft is made from steel or stainless
steel.
C.Surface Treatment
Blacking,polishing,anodize,chrome plating,zinc plating,nickel
plating,tinting.
D. Quality control
We have the quality control system during the whole production
fromthe very beginning to the end and our principle is to make sure
each shaft is qualified.
FAQ
1. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If
you are very urgent to get the price, please callus or tell us in
your email, so that we can regard your inquiry priority.
2. How should I place the order?
For air shaft and roller, please show us your drawing, or let us
know your request, and then we will provide you drawing for
confirmation.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request. One roller is OK to us.
4. What about the lead time for production?
Honestly, it depends on the order quantity and the type of our
products. Air shaft and roller which need about 15-30days.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most
convenient one or cost-effective way.
