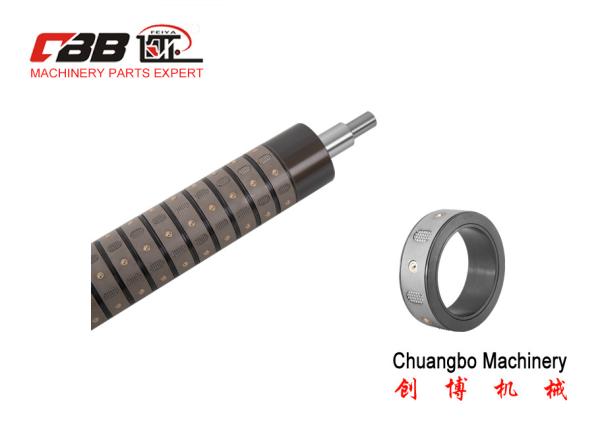

Lug Type Air Pressor Slitting Machine Differential Shaft 24mm Width
74mm Diameter
Introduction
Differential shaft is a relatively advanced shaft for rewinding,
which is suitable for users with higher requirements. A multi-roll
material can be rewind at the same time on one shaft. When a roll
material is too tight, the slip ring will slip with the shaft to
achieve a perfect rewinding. It effectively improve the slitting
speed, winding accuracy and degree of automation.
Component
Air differential shaft are made of core roll, differential ring,
rubber tube, friction parts, sealing rings.
The body of the air differential shaft is made from chrome-plate
steel or hard anodized aluminum. The friction plate can be made
from polyurethane, polyethylene, or rubber to max tension required.
According to the drawing, we can make steel shaft head with
different sizes.
Classification
- Pneumatic ball type
- Pneumatic lug type
- Mechanical ball type
- Mechanical lug type
Size air shaft
| Type of air shaft | Unaerated diameter of air shaft (ømm) | Inflated diameter of air shaft(ømm) | Applicable paper core tube inner diameter(ømm) |
| 3″ | 74-75 | 80-82 | 75.5-78 |
| 6″ | 150 | 154-156 | 151-153 |
The advantages of CBB products
A. Trustworthy company and long history
Established in 1995, CBB Ruian Chuangbo is one of the biggest
machinery spare parts manufacturer in East China. Bigger than
20,000 square meters factory and more than 180 employees.
B. Hight quality material for the core shaft and spare parts
The body of the differential shaft is made from steel or stainless
steel.We will check the surface roughness,straightness, dynamic
balance,cylindricity and so on to make sure it's qualified to use.
C.Surface Treatment
Blacking,polishing,anodize,chrome plating,zinc plating,nickel
plating,tinting.
The overall quenching and tempering treatment improve the wear
resistance and corrosion resistance,which make it possible to use
in a variety of environment.
D. Quality control
We have the quality control system during the whole production
fromthe very beginning to the end and our principle is to make sure
each shaft is qualified.
Application of differential air shaft

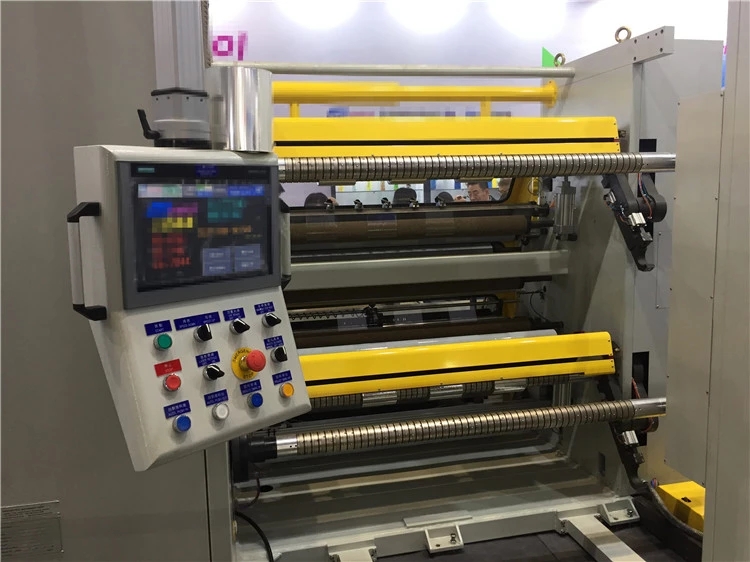

1.The applicable Machine
It is used for slitting machine,coating machine,cutting
machine,printing machine,compounding machine,paper making
machine,bag makeing machine, embossing machine and so on .It can
greatly improve the working efficiency and the quality of products.
2.The applicable Material
Differential air shaft has been widely used in plastic film
including electronic, capacitor, battery film, plastic wrap,
packaging, composite film, metal foil such as copper foil and
aluminum foil, paper and pvc sheet.
