Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan

    Buy cheap Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan from wholesalers

    Buy cheap Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan from wholesalers
    • Buy cheap Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan from wholesalers
    • Buy cheap Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan from wholesalers
    • Buy cheap Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan from wholesalers

    Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan

    Ask Lasest Price
    Brand Name : CBB
    Model Number : DF-7, DF7
    Certification : CE
    Price : USD180-210/piece
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pieces per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

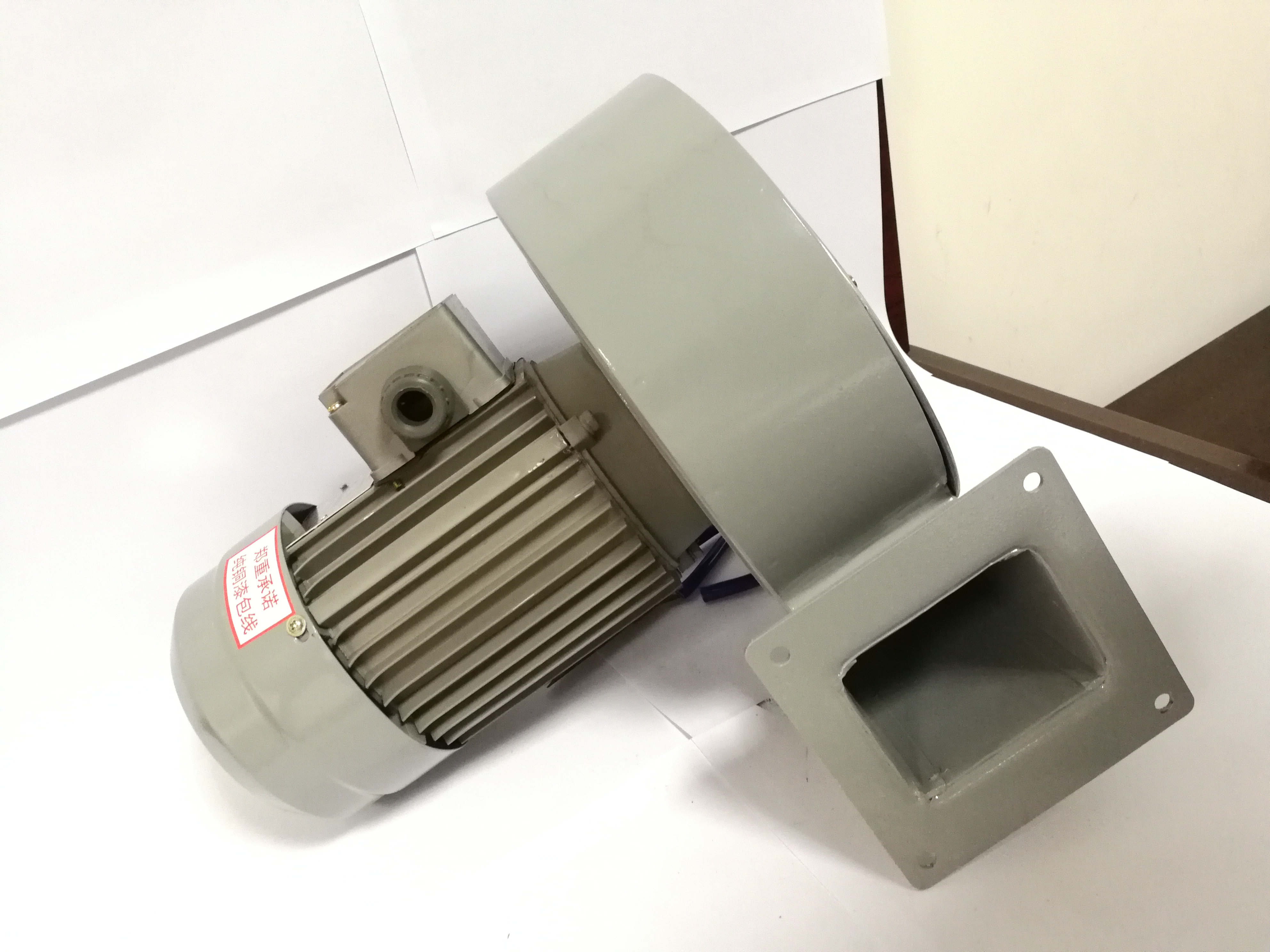

    Cooling DF7 1.1kw AC 380V Centrifugal Blower Fan

    Clockwise Machine Cooling Use Centrifugal Blower Fan DF-7 DF7 1.1kw AC 380V
    Introduction
    The centrifugal fan is a blower that depends on the input mechanical energy to increase the gas pressure and discharge the gas. It is a driven fluid machine. Centrifugal fans are widely used in factories, mines, tunnels, cooling towers, vehicles, ships and buildings for ventilation, dust removal and cooling; boilers and industrial furnaces and kilns for ventilation and induced air; air conditioning equipment and household appliances equipment cooling and Ventilation; drying and selective delivery of grain; wind tunnel wind source and hovercraft inflation and propulsion.

    Component

    MotorYS 802-2 1.1kw
    ImppellerSteel
    Air inletSteel with spray
    ShellSteel
    Net coverSteel net


    Specification

    Model type: DF-7

    Motor model: YS 802-2

    Rated voltage: AC 380V

    Frequency: 50Hz

    Rated Current: 2.00A

    Power: 1.1KW

    Speed: 2800rpm

    Flow: 1650m3/h

    Static pressure: 1260 Pa

    Weight: 16.8kg

    Advantages

    1. The Fan with Compact structure.
    2. The impeller will do by dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.
    3. The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
    4. Fan Material is optional according to your need.
    5. Customzation is acceptable.

    Application

    Kinds of machines for cooling

    Building cooling


    Why choose CBB Chuangbo
    Quality Guarantee
    We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.
    Price Guarantee
    The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.
    Delivery Time Guarantee
    We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.
    Service Guarantee
    We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.

    About CBB Chuangbo
    Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts. The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.
