    Steel 4.70A 2800Rpm 2.2KW Centrifugal Blower Fan

    Ask Lasest Price
    Brand Name : CBB
    Model Number : DF-9
    Certification : CE
    Price : USD300-400/piece
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pieces per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

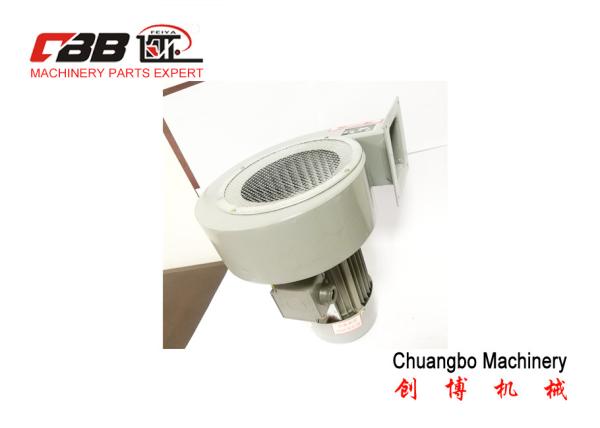

    Steel 4.70A 2800Rpm 2.2KW Centrifugal Blower Fan

    AC 380V Input 2.2KW Centrifugal Blower Fan DF-9 Motor YS90L-2 different direction
    Brief introduction
    DF series centrifugal fan can feature in rich wind, high pressure and low noise by the "multiple, forward, narrow" impellers. Widely used in printing, packaging, plastics, paper, glass, pharmaceuticals, footwear and other machiner and industrial. It can also be used for temperature, dust emission, cooling and so on.

    When impeller rotates, the air will leave the channel, the outward movement by the centrifugal force, the center of the impeller can generate the degree of vacuum, and therefore intake air. Then intake air will be folded 90°at the entrance of impeller, get kinetic and pressure energy under the blades effect. Air flow from blade channel flows into spiral volute, exhausts from air outlet after concentration and deversion.

    Component

    Motor: YS 90L-2 2.2KW

    Impeller: Steel with dynamic balancing

    Air inlet: Steel with Spray

    Shell: Steel

    Net cover: Steel net


    Specification

    Model Type: DF-9 / Motor Type: YS 90L-2
    Rated VoltagFrequencyRated CurrentInput PowerSpeedAir FlowNoiseStatic Pressure
    (V AC)(Hz)(A)(W)(RPM)(m3/h)≤Db(Pa)
    380V504.70220028002800821650
    Operation ModeContinuous operation
    Direction of RotationClockwise (counterclockwise optional)
    Mounting Position4 direction
    BearingBall bearing
    Net weight32.8kg
    BladesSteel

    Applications

    • · For building ventilation system, air-conditioning(HVAC), purification equipment and High-temperture system.
    • · For equipments or system of filtration & drying, fume hood & spray booth, paiting room, food processing , kitchen room and so on.

    Advantages

    1. The Fan with Compact structure.
    2. The impeller will do by dynamic balancing tests. It greatly improves the stability of the impeller operation, and reduces the vibration and noise.
    3. The Fan with advantages of small volume, light weight, angle adjustable and convenient for installation and maintenance.
    4. Fan Material is optional according to your need.
    5. Customzation is acceptable.

    Why choose CBB Chuangbo
    Quality Guarantee
    We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.
    Price Guarantee
    The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.
    Delivery Time Guarantee
    We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.
    Service Guarantee
    We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.

    About CBB Chuangbo
    Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts. The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.
