One Inch 1" Steel Made Lug Type Air Expanding Shaft Small Diameter Customized

Summary

In converting industry must be installed air shafts and safety chucks that fit together and perfectly center the reel. To meet all the needs and requirements of our customers and to ensure reliability and ease of use, we have designed and manufactured a wide range of expanding shafts, keyed and lug leaf typeshafts, all made of aluminum or steel for core reels from 1" to12" and other dimensions on request

Application

Air shaft application in all industries. One inch air shaft is special for some core very small.

Size of Air Expanding Shaft

The diameter can change if customer want any size of diameter

Advantages:

• Short time: only takes 3 seconds for the separation and placement of the inflating shaft and the core can be complete the inflating and deflating, and it can be tightly occluded with the core without decomposing any part at the end of the shaft.
• Simple placement: it can be moved and fixed at any position of the cure on the shaft surface by inflating and deflating.
• High economic efficiency: shaft design for special functions, thick, thin, wide, narrow all kinds of paper tube can all be used.
• Long life time: although the inflatable shaft is a mechanical accessories, but its own structure of each part has a fixed specification, can be used interchangeably, so that its maintenance is convenient.
• Factory directly supply.
• All specification can be customized.

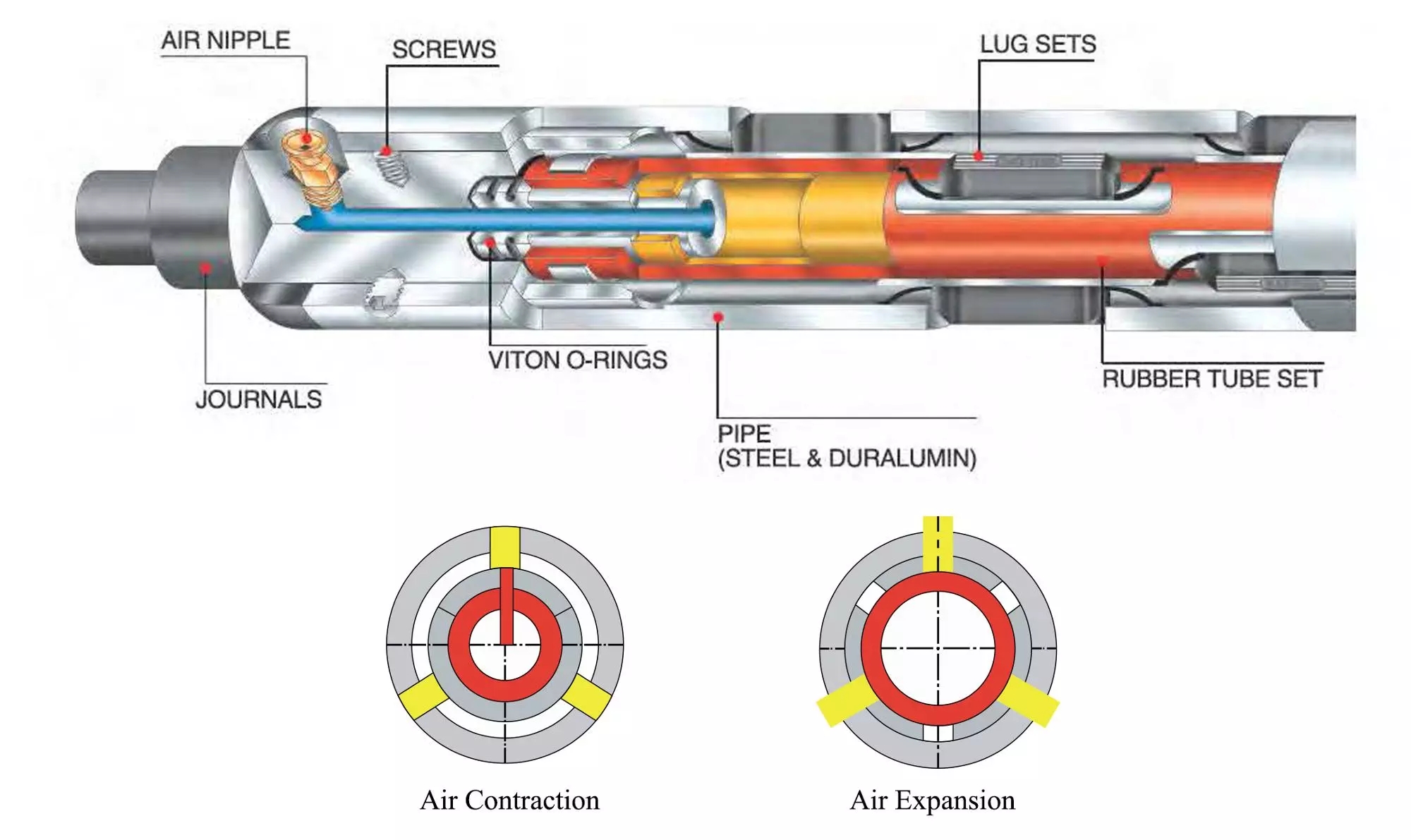

Air shaft type:

According to the expanding elements material, the air expanding shaft has following type:

But for small diameter air shaft, lug type is the best choice.

• Lug type (Steel material)
• Lug type (Aluminum material)

Our strengths:

1. The first domestic independent R & D manufacturer and more than 20 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and useful.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
