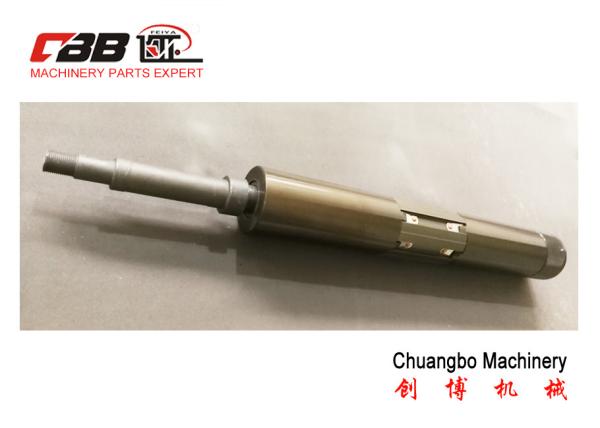

    Brown Aluminum Ø 74mm Leaf Shaft For 3 Inch Core

    Ask Lasest Price
    Brand Name : CBB
    Model Number : AL3
    Certification : CE
    Price : USD300-1000/piece
    Supply Ability : 2000 pieces per month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Brown Aluminum Ø 74mm Leaf Shaft For 3 Inch Core

    Adjustable Leaf Type Air Expanding Shaft Left And Right Adjust Easy To Operate

    Summary

    CBB brand 2020 new design adjustable leaf type (Lath type) air shaft is a special shaft for winding and unwinding which need some pricisely adjustment for left and right side. The shaft is created by the leaves on the surface, which will be expand when the high-pressure gas filled in the shaft. Air shaft is easy to operate, the user only have the air supply with the air pressure controlled within 6-8kg/cm2. Just aired the shaft through the air valve and when user want to lock the web. Just push the core activities of the air valve to deflate, the keys will revert to its original appearance, then web can be removed easily. If need to adjust, you can adjust the position of the expanding by turning the knob on the back, the adjustment can be at most 60mm.



    Product Purpose

    It is applicable to winding and unwinding shaft of the related machines in coating ,cutting,printing,compounding,paper making,bag making,plastic items,specially the occasion of the high-efficient roundness required or surface winding and unwinding of the paper tube.Moreover,it also can improve efficiency and quality of the products.

    Adjustable air shaft is especially for some machines need a little adjustment, which is smaller than 60mm to make the roll rewind better.



    Application

    Air shaft application in all industries

    IndustryName
    Air shaft for printing industryFlexo printing machine
    Offset printing machine
    Gravure printing machine
    Air shaft for cutting industryCutting machine
    Air shaft for slitting industrySlitting machine
    Air shaft for coating industryCoating machine
    Air shaft for laminating industryLaminating machine
    Air shaft for bag making industryBag making machine

    Air shaft can used for every kinds of machine which need rewind and unwind.


    Size of Air Expanding Shaft

    Standard size of air shaft is useful all over the world for almost all kinds of machines

    SpecificationsDiameter of air shaft before fill up airDiameter of air shaft after fill up airInside diameter of suitable paper core
    1"Ø 24mmØ 27 - Ø 28mmØ 25 - Ø 26mm
    1.5 "Ø 36mmØ 40 - Ø 42mmØ 38 - Ø 38.5mm
    2 "Ø 49mmØ 52 - Ø 54mmØ 50 - Ø 51mm
    3 "Ø 74mmØ 79 – Ø 82mmØ 75.5 - Ø 78mm
    4 "Ø 99mmØ 104 – Ø 106mmØ 101 - Ø 102mm
    5 "Ø 125mmØ 130 – Ø 133mmØ 126 - Ø 128mm
    6 "Ø 150mmØ 154 – Ø 156mmØ 151 - Ø 153mm
    8 "Ø 200mmØ 206 – Ø 213mmØ 202 - Ø 204mm
    10"Ø 250mmØ 260 - Ø 264mmØ 252 - Ø 256mm
    12"Ø 300mmØ 308 - Ø 310mmØ 302 - Ø 305mm

    We can customized other sizes of air shaft even if the air shaft is not standard size.


    Advantages:

    • Adjustable for the expanding part.
    • Expands instantaneously for fast roll mounting.
    • Grips cores securely without core or roll damage.
    • Used for unwind or rewind positions, especially for slitting machine unwinding.
    • Manual or automatic rotary union air supply.
    • Positive collapse for quick roll removal.
    • Reliable performance.
    • Manufactured to your specifications to suit your equipment.
    • Ideal for plastic, aluminum or steel cores.
    • All specification can be customized.

    F&Q

    1. When can I get the quotation?

    Usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call

    us or tell us in your email, so that we can regard your inquiry priority.

    2. How should I place the order?

    For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

    3. What is the MOQ?

    We don't have MOQ request, 1 pieces order is OK.

    4. What about the lead time for production?

    Up to your quantity, normally less than one month.

    5. Can you produce relative product,like adapter,hand shank?

    Yes. We are profeesinal in the machinery parts, our main products including aluminum guide roller, air shaft, powder brake, centrifugal blower, torque motor and so on.


    About CBB Chuangbo:

    Ruian Chuangbo Machinery Co.,Ltd. is one of the biggest manufacturer of machinery parts in East China

    We have a factory more than 20,000 square meters and more than 180 employees in the company.

    The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.
