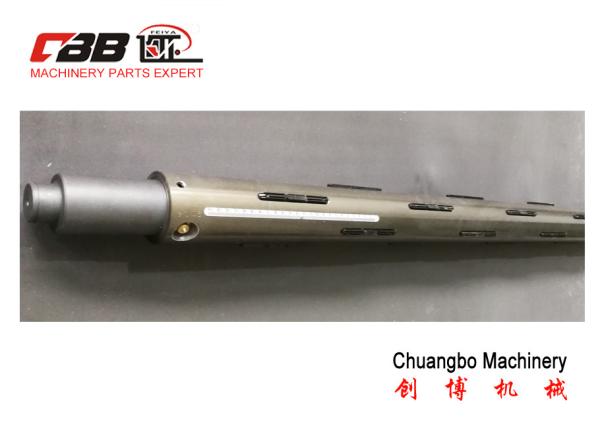

Aluminum Material Light Weight Air Expanding Shaft Lug Type 74mm For 3 Inch Core

Summary

CBB brand air shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound. An Air Shaft is designed so that, on fitting into a core, it can be readily expanded, thereby achieving a quick and firm attachment, it may also be easily deflated to facility easy withdrawal of the shaft after winding of product is complete. Their efficient design makes them ideal for mounting onto bearing housings to enable the winding or unwinding of rolls of stock material with the minimum of equipment down time. The advantage of using an Air Shaft is its ability to grip the core, without damage, whilst providing a positive interface to control the web via motors & brakes. Air Shafts are available as either Key/Lug Type (with bladder down the center) or Board/Leaf Type (bladders on the periphery of the shaft)

Size of Air Expanding Shaft

Standard size

We can customized other sizes of air shaft even if the air shaft is not standard size.

Features

• Expands instantaneously for fast roll mounting.
• Grips cores securely without core or roll damage.
• Used for unwind or rewind positions.
• Manual or automatic rotary union air supply.
• Positive collapse for quick roll removal.
• Reliable performance.
• Manufactured to your specifications to suit your equipment.
• Ideal for plastic, aluminum or steel cores.

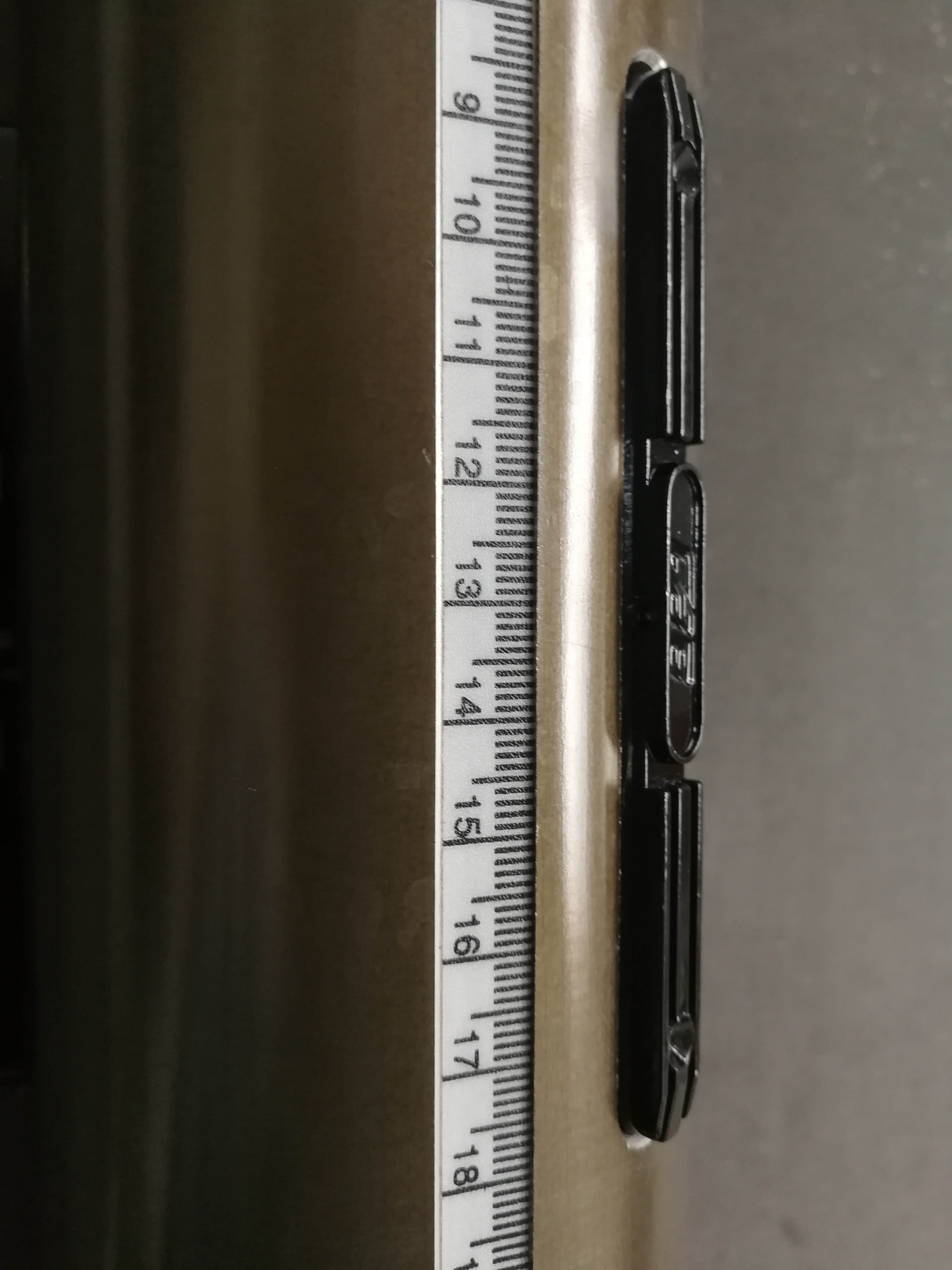

• Urethane surface lugs are available to enhance gripping.

Advantages:

1. Adopting high air press machine to meet interference fitting

We are using a high air press machine for the air shaft, which most of the machine has included it. Air power is more efficient and safe.

2. Adopting hi-precision Aluminum as the shaft body

We adopt hi-precision Aluminum as the shaft body.The thickness of this kind of tube is uniform so when the flat rubber tube inside is inflated ,all key strips will stick out at same height .And it will greatly weaken centrifugal force of the whole air shaft when it is rotating and will keep a dynamic balance.

3. Adopting special equipment to connect air chamber and shaft head

The connection between the air chamber and the shaft head is very important process,our company are using special equipment to realize it.Outside is buckled by siderosphere directly which can realize good sealing performance and stability. Many air shafts produced by other suppliers , both ends are fastened by iron wire,this is easy to leak and is with unstable sealing performance.

4. New Techology

The newest techology for the multi bladder type air shaft, the quality of the air shaft will be stable and good, the life of the air shaft will be long too.

5. Quality control

We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each shaft is qualified.

6.Packaging

Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.

Application

Air shaft is widely used for winding, rewinding and slitting machines. It is widely used in printing, packaging, plastics, paper, glass, pharmaceuticals, electronic battery, textile machine and industry.

Air shaft can used for every kinds of machine which need rewind and unwind.

Our strengths:

1. Perfect service system and after-sale protection.

2. Quality problems will be solved within 24hours.

3. One-to-one customer service tracking processing.

4. Companies carry out the ERP management, improve enterprise fast response.

5. Quality assurance, one year warranty.

6. Supporting professional matched other equipments.

7. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

F&Q

1. When can I get the quotation?

Usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call

us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place the order?

For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What is the MOQ?

We don't have MOQ request, 1 pieces order is OK.

4. What about the lead time for production?

Up to your quantity, normally less than one month.

5. Can you produce relative product,like adapter,hand shank?

Yes. We are profeesinal in the machinery parts, our main products including aluminum guide roller, air shaft, powder brake, centrifugal blower, torque motor and so on.

About CBB Chuangbo:

Ruian Chuangbo Machinery Co.,Ltd. established in 1995, is one of the biggest manufacturer of machinery parts in East China

We have a factory more than 20,000 square meters and more than 180 employees in the company.

More concerned for our products , please do not hesitate to inquiry now!

    Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts.

    The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. Our main products include aluminum guide roller series, curved roller series, air expand shaft series, centrifugal fan series, torque electric motor and controller series, frequency motor series, magnetic brake / clutch and tension controller serious , pneumatic diaphragm pump serious and so on.The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.

In 2015, the company was recognized as “Wenzhou Science and Technology (Innovative) Enterprise; in 2016, it was recognized as “Zhejiang Science and Technology SMEs”; in 2017, it was recognized as a scaled enterprise in Ruian; in 2018, it was recognized as “National High-Tech enterprise” and also awarded Wenzhou Technology R&D Center Enterprise; in 2019, company listed in Dutch Caribbean Securities.

    Company now is the member of the National Printing Machinery Standardization Technical Committee, and has 3 invention patents and 33 utility model patents.

    The company insists on the concept as "Branding Chuangbo, Satisfying customers and innovating constantly", implements ISO9001 standards and striving for excellence to ensure the product as leading ranks for domestic and international markets, provide the markets with stable quality, reasonable price, highly quality and newly competitive products. The company will continue to innovation to meet higher requirements and is willing to cooperate sincerely with all friends at home and abroad by high-quality products.
