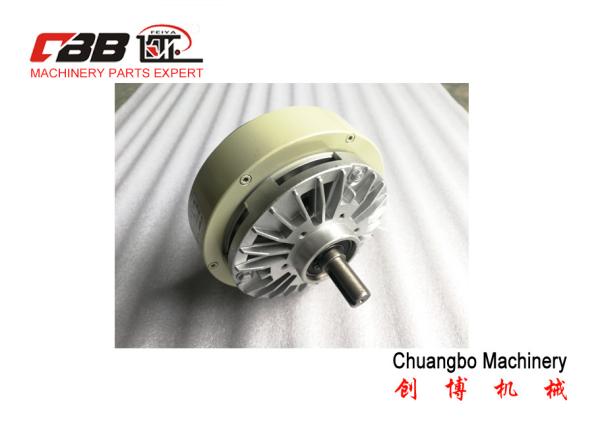

Shafted Brake 25NM Magnetic Powder Brake Tension Control FZ25A Fast
Response
Introduction
Magnetic powder brake is a special type of electromagnetic brake which does not use friction plates. Instead, it uses powder of
magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to
one shaft. When a magnetic field is applied to the powder, it forms chains connecting the disc and
rotor. The strength of the chains depends on the strength of the
magnetic field. We will be reliable powder brake supplier for you.
Application
- Labeling machine
- Tape cutting machine
- Paper cutting machine
- Non-Woven winder
- Film machine
- Film cutting machine
Parameters
| Model | Torque/N.m | Current/A | Voltage/V | Speed/rpm | Weight/kg |
| FZ6A | 6 | 0.80 | 24 | 1400 | 3.5 |
| FZ12A | 12 | 1.00 | 24 | 1400 | 6.0 |
| FZ25A | 25 | 1.50 | 24 | 1400 | 8.0 |
| FZ50A | 50 | 1.80 | 24 | 1400 | 14.0 |
| FZ100A | 100 | 2.00 | 24 | 1000 | 28.0 |
| FZ200A | 200 | 2.50 | 24 | 1000 | 50.0 |
| FZ400A | 400 | 3.00 | 24 | 1000 | 75.0 |
| Model | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | 6-S(mm) | d(mm) | t(mm) | Magnetic powder(g) |
| FZ6A | 130 | 62 | 44 | 25 | 10 | 68 | M4 | 12 | 4 | 10 |
| FZ12A | 157 | 62 | 50 | 30 | 15 | 84 | M5 | 16 | 5 | 20 |
| FZ25A | 182 | 78 | 58 | 40 | 16 | 93 | M6 | 20 | 6 | 30 |
| FZ50A | 219 | 100 | 75 | 50 | 20 | 104 | M6 | 25 | 8 | 60 |
| FZ100A | 290 | 120 | 90 | 65 | 25 | 140 | M8 | 30 | 8 | 110 |
| FZ200A | 335 | 140 | 110 | 70 | 30 | 167 | M10 | 35 | 10 | 180 |
| FZ400A | 398 | 200 | 130 | 99 | 35 | 188 | M14 | 45 | 14 | 300 |
Advantages
1) High-precision torque control
2) Superior durability, long life
3) The stability of fixed superior torque characteristics
4) Continuous operation of the use of sliding
5) Ink sleek, non-shock
6) Suitable for high-frequency operation
Notes
- Don't overload, and cool to appropriate tempreture
- Concerning the torque, adjust the current to addjust the tension of
the brake
- Concerning the service life, rely on the life of the magnetic
powder, can add or change the powder if the slip torque reduced to
50-70% of the rated value
