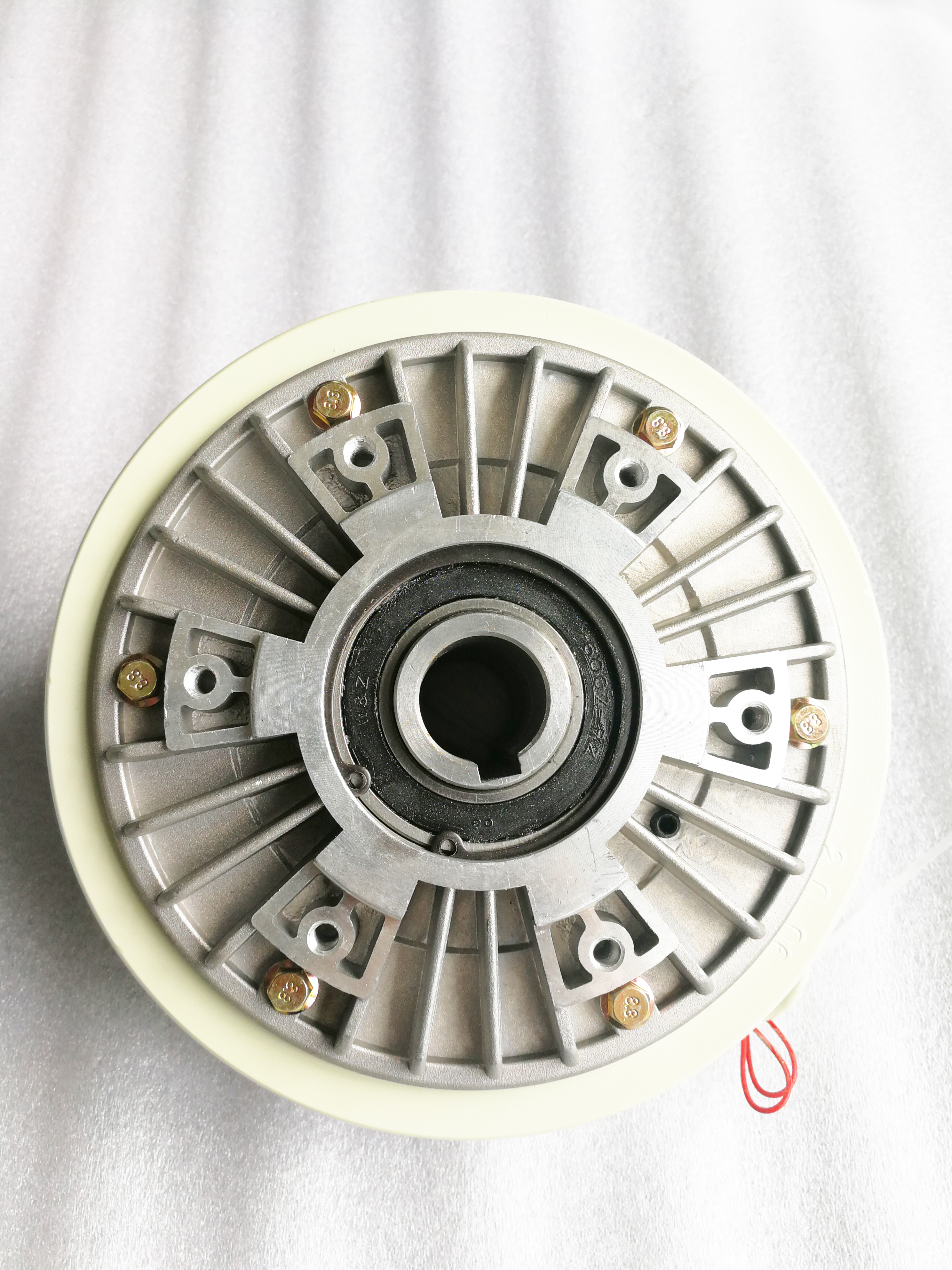

50NM Most Useful Hollow Type Magnetic Powder Brake Input DC 24V
FZ50K Precise Control
Introduction
Hollow type magnetic powder brake is a type of auto-control component with high-performance which
uses driving and driven units as main body, powder (magnetic
powder) with high magnetic conductivity as working medium and
exciting current as control means so as to achieve control
transfer/braking torque and to keep the linear relationship between
input current and output torque. With the development of the modern
industry, it plays an increasingly important role in all industrial
fields and demonstrates great advantages over other components.
Details for brake
| Type: | Cellular type magnetic powder brake |
| Model: | FZ50K |
| Torque: | 50NM/5.0kg |
| Voltage | DC24V |
| Type | Powder |
| Warranty: | 1 year |
Application
Paper making machine
Printing machine
Packaging machine
Plastics machine
Rubber machine
Textile machine
Other machines
Advantages
1) High-precision torque control
2) Superior durability, long life
3) The stability of fixed superior torque characteristics
4) Continuous operation of the use of sliding
5) Ink sleek, non-shock
6) Suitable for high-frequency operation
Parameters
| Model | Torque/N.m | Current/A | Voltage/V | Speed/rpm | Weight/kg |
| FZ6K | 6 | 0.80 | 24 | 1000 | 3.0 |
| FZ12K | 12 | 1.00 | 24 | 1000 | 4.5 |
| FZ25K | 25 | 1.50 | 24 | 1000 | 7.5 |
| FZ50K | 50 | 1.80 | 24 | 1000 | 12.0 |
| FZ100K | 100 | 2.00 | 24 | 800 | 20.5 |
| FZ200K | 200 | 2.80 | 24 | 800 | 30.0 |
| FZ400K | 400 | 3.00 | 24 | 800 | 55.0 |
| Model | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | 6-S(mm) | d(mm) | t(mm) | Magnetic powder(g) |
| FZ6K | 130 | 62 | 52 | 3 | 57 | 60 | M4 | 16 | 6 | 10 |
| FZ12K | 150 | 82 | 65 | 4 | 68 | 72 | M5 | 20 | 6 | 20 |
| FZ25K | 182 | 110 | 90 | 4 | 80 | 84 | M6 | 25 | 8 | 30 |
| FZ50K | 219 | 130 | 110 | 5 | 90 | 95 | M6 | 30 | 8 | 60 |
| FZ100K | 260 | 140 | 120 | 5 | 105 | 110 | M8 | 35 | 10 | 110 |
| FZ200K | 335 | 170 | 150 | 5 | 115 | 120 | M10 | 45 | 14 | 180 |
| FZ400K | 398 | 200 | 180 | 6 | 135 | 140 | M14 | 60 | 18 | 300 |
Reasons to choose us:
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. Unique development and design capabilities to meet the needs of
special-purpose equipment manufacturing.
Shipping
1.We delivery packages within 3~7 working days after payment
received.
2.Express via DHL,FedEx,TNT,EMS,UPS,etc. If you need to ship by
your way,please contact with us.
3.All our goods are strictly inspected and strong packed before
shipping.To avoid package damaged caused by transportation.When you
sign for the package, be sure to check to see if it is damaged or
not. If damaged, please take pictures and contact us at the first
time.
