Good Balanced Aluminum Alloy Guide Roller Soft Anodized HV300 With Groove

Introduction

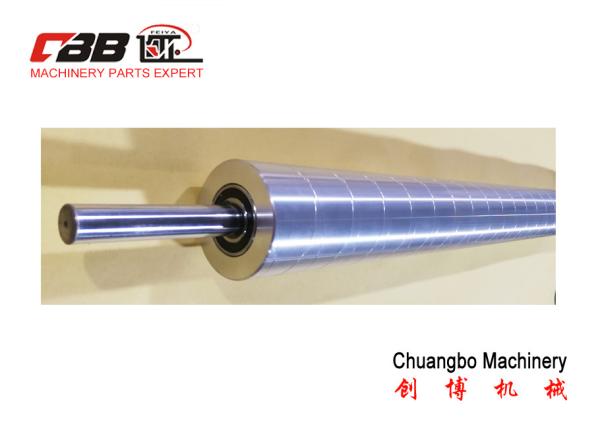

Aluminum alloy guide roller is made of high quality aluminum alloy materials. We adopt high quality aluminum alloy as the body material,use extrusion molding and make ribs structure inside.The outside diameter can be made from 25mm to 320mm.Under the treatment by computer balancing correction process,the dynamic balance of the aluminum roller will be smaller than 2g.With using of sophisticated equipment and special tools,the roll surface gloss can be 0.8,concentricity can reach 0.02mm.
Special treatment in the shaft axle and the using of imported bearings will make sure the the aluminum guide roller work very well at high speed with no deformation.

Parameters

Charateristic

Type of Roller

1. Hollow type (With bearing house)
2. Dead shaft type
3. Live shaft type

Type of Groove on surface

• Center line
• Cross line
• Grooved line

Normal sizes of the aluminum alloy guide roller products

Advantage

Good material
The aluminum material is well selected, has good chemical properties, is not easy to age, and has a long service life.

Delicate and smooth
The overall surface is smooth, polished processing, can improve work efficiency.

Multiple choices
Variety of styles, fair prices, complete specifications.

Features
Our aluminum guide rollers have the characteristics of high strength, low resistance, light weight, flexible rotation, no-rusty, wear resistance and corrosion resistance.
Aluminum guide rollers are widely used in printing, packaging plastics, paper, glass, pharmaceutical, electronics batteries, textile machinery and industries.

Surface treatment
We can also do special treatment on the aluminum roller surface which can realize good scratch resistance, abrasion resistance and anti-sticking performance.
01. Anodizing treatment HV300,the surface is silver.
02. Hard anodic oxidation treatment HV700,the surface is dark brown.
0.3 Green hard treatment,the surface is green.The roller is Anti-adhesion, anti-corrosion.
04. Mirror hard anodic oxidation treatment HV700 treatment, the surface is dark brown and has excellent mirror gloss.
