Anodized Small Runout Aluminum Alloy Guide Roller Balanced For High
Speed Machine
Charateristic

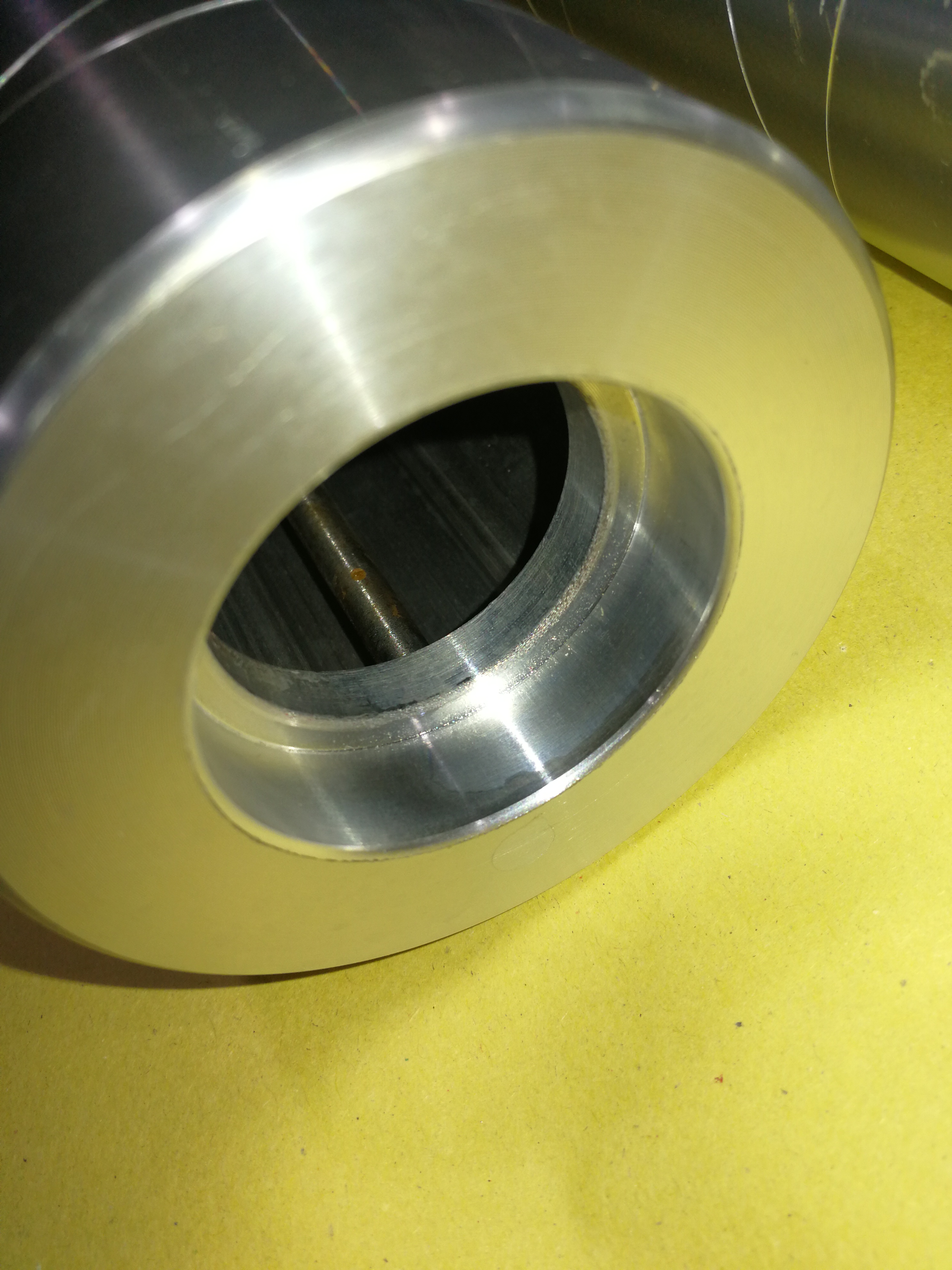

Aluminum guide roller (also known as "aluminum alloy guide roll")
is made of high quality aluminum alloy materials, and it has all
kinds of modules and sizes with ribs structure and the outside
diameter is from 25mm to 320mm. Under the cheat by computer
balancing correction process, the dynamic balance of the aluminum
roller will be small than 2g. With using of sophisticated equipment
and special tools, the roll surface gloss can be 0.8, concentricity
can reach to 0.02mm. Special cheated in the shaft axle of the
roller, with imported bearings, the aluminum guide roller works
well even at high speed, Chuangbo brand aluminum guide roller is
high strength, low resistance, light weight, flexible rotation,
no-rusty, wearable and corrosion resistance, especially suitable
for printing, packaging, plastics, paper, glass, pharmaceutical,
electronics batteries, textile machinery and industries.
Parameter
| Diameter | 22-320mm |
| Length | 100-6000mm |
| Anodize | HV300/HV700 |
| Thickness of anodize | 20-80μm |
| Type | Hollow / Dead shaft / Live shaft |
| Surface | Smooth/ Cross line/ Center line/ Groove line |
| Smoothness | Ra6.3-0.4 |
| Balancing | G6.3/G2.5 |
Specification
| Type of roller | Hollow type |
| Dead shaft type |
| Live shaft type |
| Surface treatment | HV300 soft anodize |
| HV700 hard anodize |
| HV700 hard anodize with mirror surface |
| Teflon |
| Surface groove | Plain |
| Cross line |
| Center line |
| Grooved line |
| Anilox line |
| Rolla line |
Size (other diameter can be customized too)
| Finished Diameter/mm | Material Diameter/mm | Inner Diameter/mm | Thickness |
| φ22 | φ22.7 | φ15 | 3.85 |
| φ25 | φ25 | φ18 | 3.5 |
| φ28 | φ28 | Φ22 | 3 |
| φ30 | φ30.1 | φ20.1 | 5 |
| φ34 | φ33.8 | φ25.4 | 4.2 |
| φ35 | φ35 | φ26 | 4.5 |
| φ38 | φ38.2 | φ30.2 | 4 |
| φ40 | φ40.1 | φ30.1 | 5 |
| φ42 | φ42 | Φ33 | 4.5 |
| φ45 | Φ45 | Φ35 | 5 |
| φ50 | φ50.2 | φ40.2 | 5 |
| φ51 | φ51 | Φ38.6 | 6.2 |
| φ52 | φ52.3 | φ45.3 | 3.5 |
| φ55 | φ55 | φ45 | 5 |
| φ57 | φ57.2 | φ50.2 | 3.5 |
| φ60 | φ60 | φ50 | 5 |
| φ61 | Φ60.6 | Φ50.6 | 5 |
| φ70 | φ70 | φ61.0 | 4.5 |
| φ72 | φ72.4 | φ64.4 | 4 |
| φ75 | φ75 | φ66 | 4.5 |
| φ75 | φ75 | φ60 | 7.5 |
| φ77 | φ77.4 | φ70 | 3.7 |
| φ80 | φ81.3 | φ73.7 | 3.8 |
| φ80 | φ80.2 | φ70 | 5.1 |
| φ80 | φ80 | φ64 | 8 |
| φ90 | φ90.5 | φ82.9 | 3.8 |
| φ90 | φ90.6 | φ75.6 | 7.5 |
| φ100 | φ100.5 | φ92.5 | 4 |
| φ100 | φ100.8 | φ89.80 | 5.5 |
| φ110 | φ111 | φ101.8 | 4.6 |
| φ120 | φ121.8 | φ111.8 | 5 |
| φ120 | φ120.4 | φ108.4 | 6 |
| φ130 | φ131 | φ120 | 5.5 |
| φ150 | φ151.5 | φ139.5 | 6 |
| φ150 | φ151.5 | φ135.5 | 8 |
| Φ162 | Φ162.5 | Φ146.5 | 8 |
| Φ172 | Φ172.2 | Φ156.2 | 8 |
| φ180 | φ180 | φ160 | 10 |
| φ200 | φ202 | φ186 | 8 |
| φ240 | φ240 | φ208 | 16 |
| Φ320 | Φ320 | Φ296 | 12 |
Advantages
Good material
The aluminum material is well selected, has good chemical
properties, is not easy to age, and has a long service life.
Delicate and smooth
The overall surface is smooth, polished processing, can improve
work efficiency.
Multiple choices
Variety of styles, fair prices, complete specifications.
About CBB Chuangbo
Ruian Chuangbo Machinery Co., Ltd. established in 1995, is
specialized in manufacturing of machinery parts.
In 2015, the company was recognized as “Wenzhou Science and
Technology (Innovative) Enterprise; in 2016, it was recognized as
“Zhejiang Science and Technology SMEs”; in 2017, it was recognized
as a scaled enterprise in Ruian; in 2018, it was recognized as
“National High-Tech enterprise” and also awarded Wenzhou Technology
R&D Center Enterprise; in 2019, listed in Dutch Caribbean
Securities. Company now is the member of the National Printing
Machinery Standardization Technical Committee, and has 3 invention
patents and 33 utility model patents.
