Hard Anodize Small Runout Light Weight Aluminum Idler Roller HV700 Cross Line

Summary Introduction

Aluminum idler roller is made of high quality aluminum alloy material 6061/6063 T6, which is high plasticity and strong structure. It has all kinds of modules and sizes with ribs structure and the outside diameter is from 25mm to 320mm. Under the cheat by computer balancing correction process, the dynamic balance of the aluminum roller will be small than 2g. With using of sophisticated equipment and special tools, the roll surface gloss can be 0.8, concentricity can reach to 0.02mm.

Parameters

Type of roller

1: According to the shaft type, the roller has 3 different types

Hollow type

Dead shaft type

Live shaft type

2: According to the surface treatment, the roller has 4 different types

HV300 soft anodize (Silver white)

HV700 hard anodize (Dark brown)

HV700 hard anodize with mirror surface

Teflon

3: According to the surface groove, the roller has 6 different types

Plain

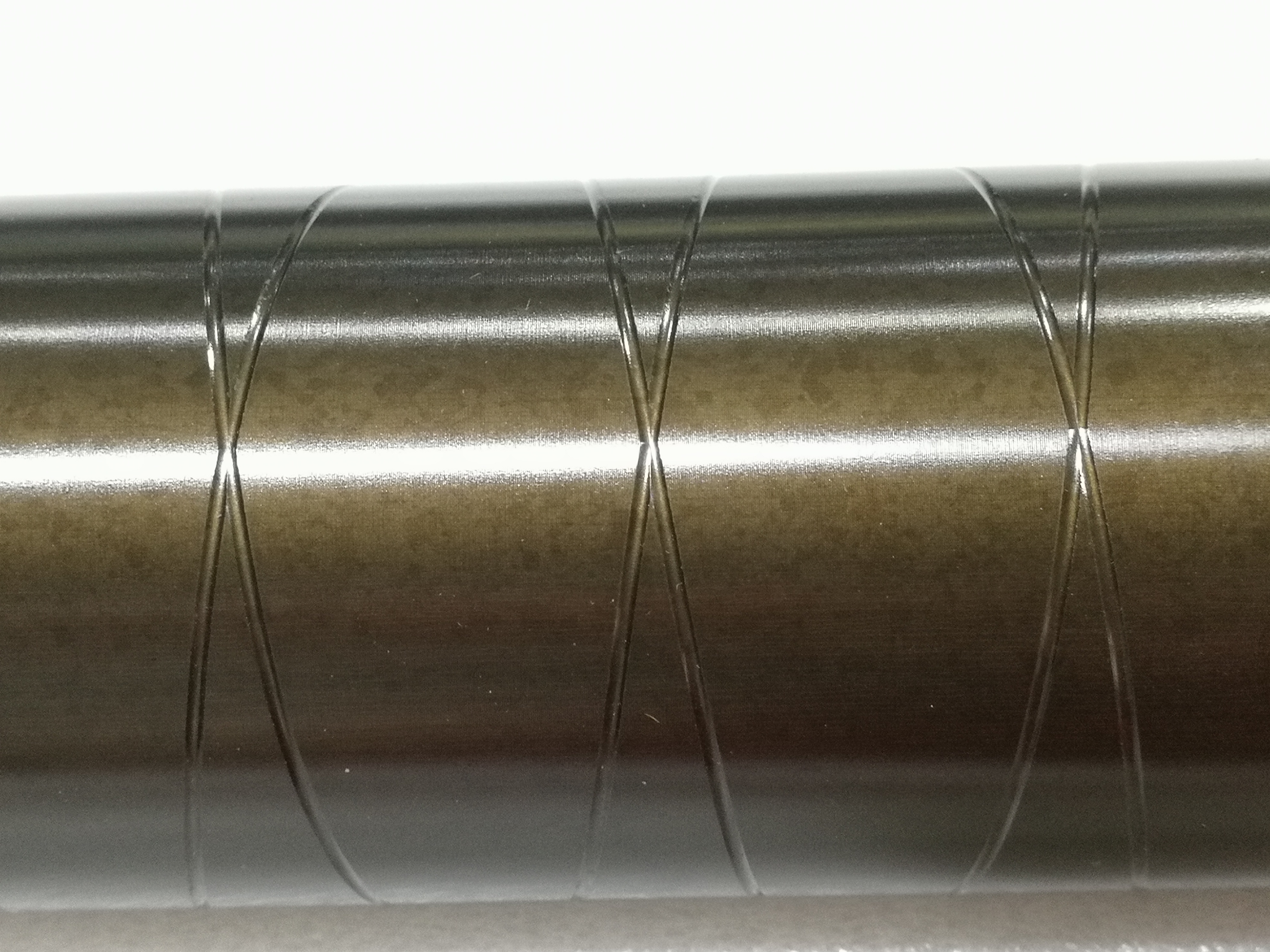

Cross line

Center line

Grooved line

Anilox line

Rolla line

Features

• Strong ribs inside the material of the aluminum idler roller can reduce the weight of the roller, making it less inertial and stable in operation
• Stable 6063 T6 and 6061 T6 material will ensure the stable quality of the aluminum alloy guide roller.
• The high-precision lathe can ensure the aluminum alloy guide roller correct size, good concentricity, and small runout.

• Proper smoothness of the surface and groove on the surface will reduce web slippage and get better tension control. Reduce bearing side-thrust, longer the life of the bearings.

• In the printing machines, there are a lot of chemicals and dust, proper quantity of aluminum guide rollers are with live shaft and with dead shaft can make the life of the bearings for the machines much longer

Advantages

a.There is a rib structure in the aluminum guide roller, which makes it very strong.

b.We use precision equipment and special tools to finish the surface to make the surface smooth and the concentricity reaches 0.02mm.

c.Dynamic balance accuracy within 2g

In the production process, through the hot set matching process and the appearance of the CNC lathe, the aluminum guide roller can obtain high bonding strength and precision, good linearity and concentricity, and a high-speed dynamic balancing system can ensure static balance With high-speed dynamic balancing performance, it can ensure that aluminum guide rollers run on the machine at high speed without vibration.

d.Low resistance, light weight, flexible rotation, no rust, wear resistance and corrosion resistance

Application

Aluminum idler rollers are widely used in printing, packaging plastics, paper, glass, pharmaceutical, electronics batteries, textile machinery and industries.

Sizes
