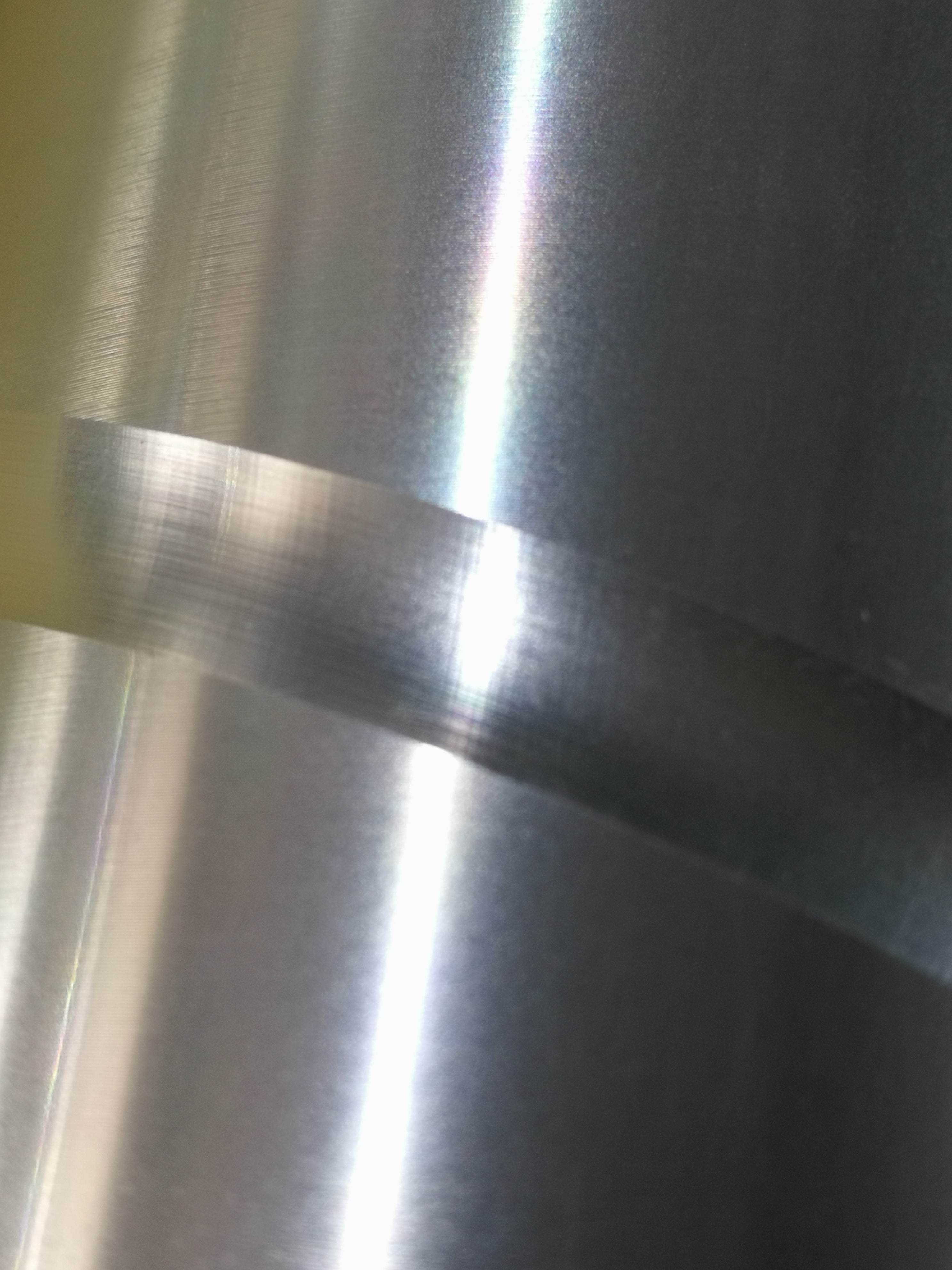

Soft Anodize Silver White Anodized Aluminum Idler Roller Big Groove Center Groove

Introduction

Aluminum guide roller (also known as "aluminum alloy guide roll") is made of high quality aluminum alloy materials, and it has all kinds of modules and sizes with ribs structure. Under the cheat by computer balancing correction process, the dynamic balance of the aluminum roller will be small than 2g. With using of sophisticated equipment and special tools, the roll surface gloss can be 0.8, concentricity can reach to 0.02mm. Anodized surface of the aluminum alloy guide roller makes the soft aluminum material much harder, and meanwhile will not be oxidized by oxygen in the air, which will change the shape and accuracy and affect the high-speed operation of the machine. Dynamically Balanced roller will help machine running stable and funcitonal.

Parameters

Type of roller

1: According to the shaft type, the roller has 3 different types

Hollow type

Dead shaft type

Live shaft type

2: According to the surface treatment, the roller has 4 different types

HV300 soft anodize (Silver white)

HV700 hard anodize (Dark brown)

HV700 hard anodize with mirror surface

Teflon

3: According to the surface groove, the roller has 6 different types

Plain

Cross line

Center line

Grooved line

Anilox line

Rolla line

Advantage

• High quality hollow type roller or aluminum idler roller with carbon steel shaft is stable when running.
• High-speed dynamic balancing is an indispensable process for each aluminum guide roller. Materials that are not printed through dynamic balancing may have uneven ink thickness.

• Stable 6063 T6 and 6061 T6 material will ensure the stable quality of the aluminum alloy guide roller.

• Good Concentricity will make the machine running more stable, less wrinkles, especially for thin film web.

• Ribs inside the material of the aluminum idler roller can reduce the weight of the roller.

• Anodized surface of the aluminum idler roller will make the idler rollers life much longer.

• “U-shaped” groove can not scratch the film material when the tension on the high-speed machine is high.

Size
