Good Balanced High Speed Aluminum Dead Shaft Idler Roller For Printing Machine

Advanced machinery parts can make the machine running faster and stable, light aluminum idler rollers can make the total machinery weight smaller, smaller inertia can make the machine run more efficiently and reduce the probability of mistakes.

CBB brand new aluminum dead shaft idler roller is best choice for low-inertia, low-tension applications, with dynamic balanced, idler roller will be free running performance, especially good for high speed gravure printing machine and flexo printing machine.

Advantage of CBB Brand Aluminum dead shaft idler roller

• High quality of 6063 T6 and 6061 T6 material will make the stable quality of the aluminum alloy guide roller.
• Ribs inside the material can make the roller stronger.
• High-speed dynamic balancing is an indispensable process for each aluminum guide roller, especially on machines that exceed 200 meters per minute.

• Materials that are not printed through dynamic balancing may have uneven ink thickness

• Proper smoothness (Or according to customers inquiry) of the surface and groove will reduce web slippage and get better tension control. Reduce bearing side-thrust.

• Anodized of the roller will make the idler rollers life much longer.

• High quality of Carbon steel shaft will help customer's machine more stable.

Here are the normal sizes of the roller and customized is available too. Other sizes are available for special inquiry too.

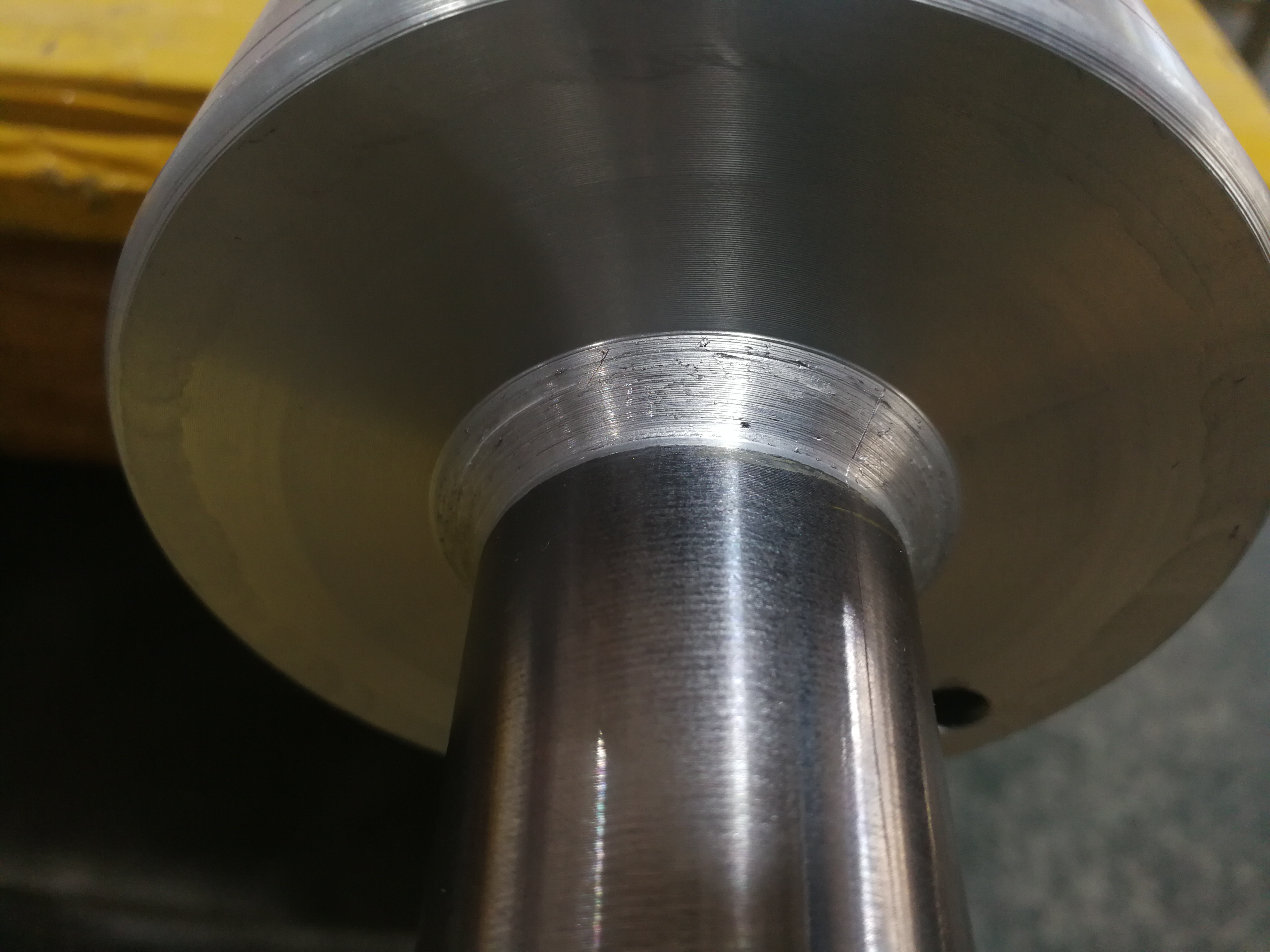

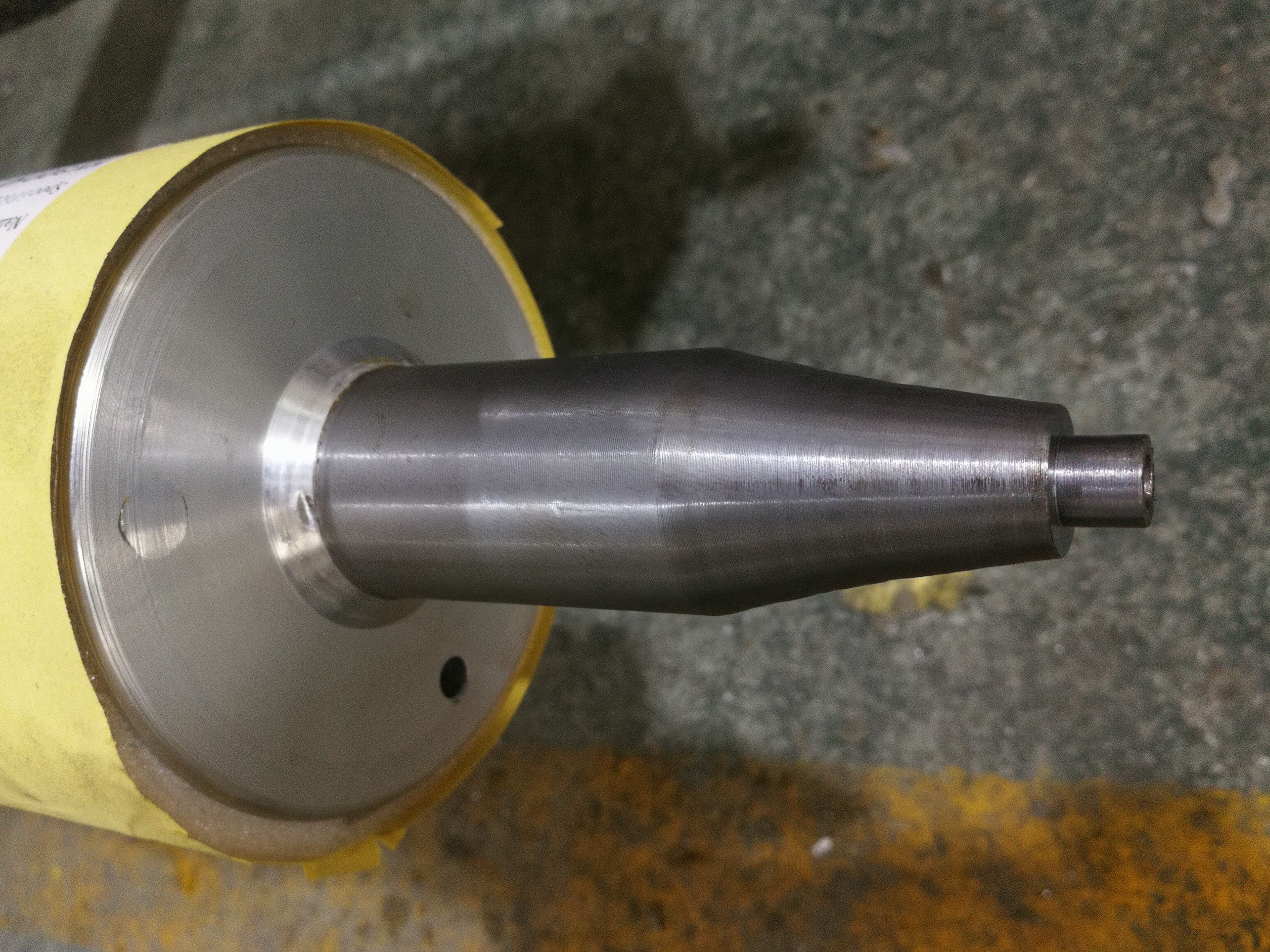

Aluminum dead shaft idler roller is made of high quality aluminum alloy materials, and it has all kinds of modules and sizes with ribs structure and the outside diameter is from 25mm to 320mm. Under the cheat by computer balancing correction process, the dynamic balance of the aluminum roller will be small than 2g. With using of sophisticated equipment and special tools, the roll surface gloss can be 0.8, concentricity can reach to 0.02mm. Special cheated in the shaft axle of the roller, with imported bearings, the aluminum guide roller works well even at high speed.

According to different industries, the surface of the roller can also do special treatment: Anodized HV300 treatment, Hard anodized HV700 treatment, Teflon treatment, to make the roller scratch, abrasion and anti-sticking.

The surface can treated by normally 3 standard line types: Center line type, Cross line type and Grooved type.
