CBB 2020 High Precision Aluminum Dead Shaft Idler Roller Drive
Roller Long Life
CBB brand 2020 new design new technology aluminum dead shaft idler roller is best choice for
low-inertia, low-tension applications, with dynamic balanced and
small diameter bearings, idler roller will be free running
performance, especially good for high speed gravure printing
machine and flexo printing machine.
Introduction
- 2020 newest technology and big supplier for material
- Manufacturer with 20 years' experience
- Warranty-1 year
- OEM available
Our Advantages
- Wide application
- Economic and efficient
- Long life and easy to use
- High load capacity
Features

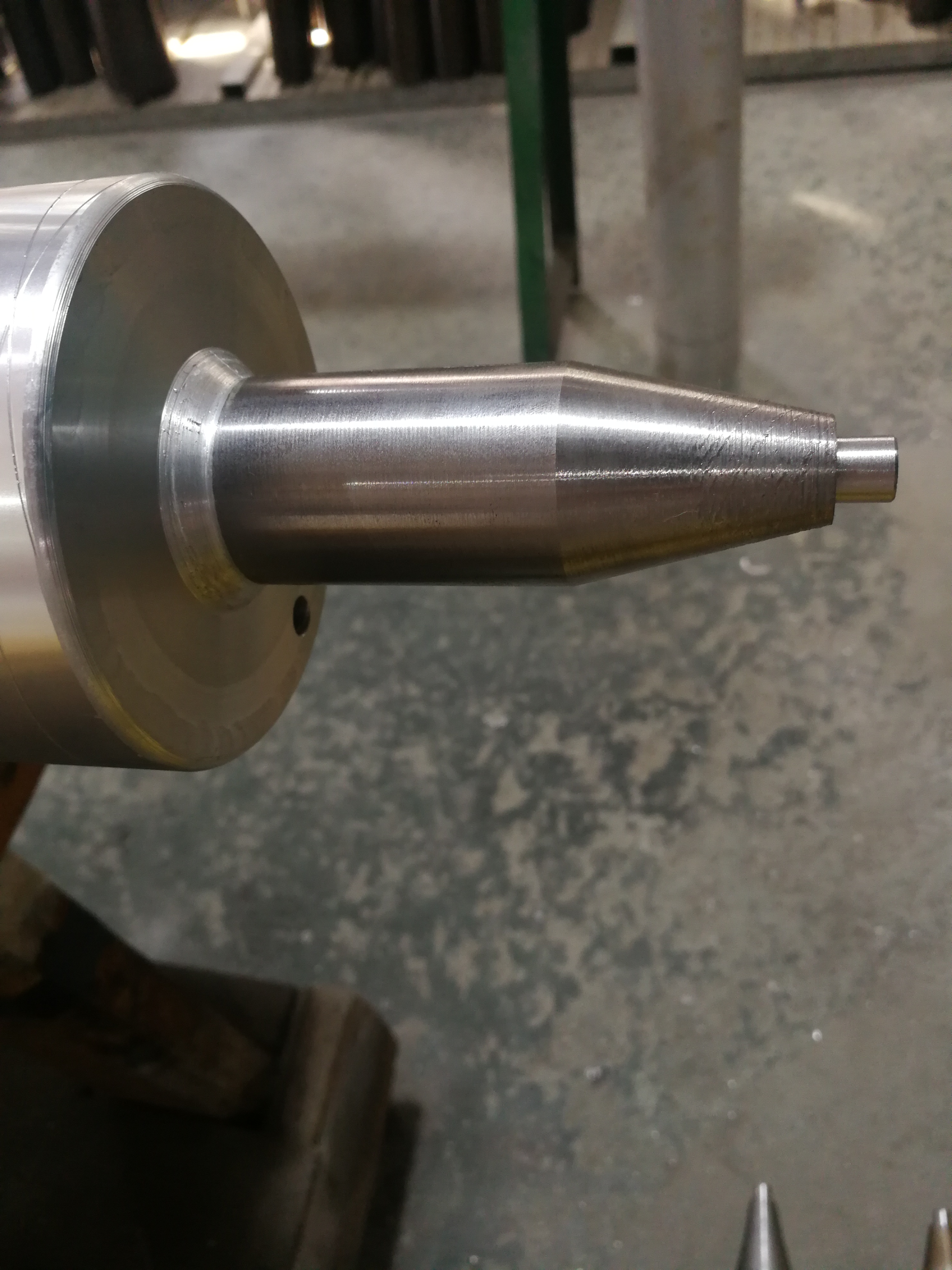

CBB aluminum dead shaft idler roller is main product of Chuangbo,
2020 newest techology supplied for this roller
| Roller type | Dead shaft type |
| Roller material | 6063/6061 T6 aluminum alloy |
| Shaft material | Carbon steel |
| Diameter | 22-320mm |
| Length | 100-6000mm |
| Runout | <0.05mm |
| Concentricity | <0.05mm |
| Smoothness | Ra 0.4-6.4 |
| Anodize | HV300/HV700 |
| Colour | Silver white/Dark brown |
| Thickness of anodize | 20-80μm |
| Surface treatment | Plain/Cross line/Center line |
| Balancing | G2.5 |
Aluminum tube specification
Here are the normal sizes of the roller and customized is available
too. Other sizes are available for special inquiry too.
| Finished Diameter/mm | Material Diameter/mm | Inner Diameter/mm | Thickness | Suggest Length of the roller |
| φ70 | φ70 | φ61.0 | 4.5 | 100-3000mm |
| φ72 | φ72.4 | φ64.4 | 4 | 100-2000mm |
| φ75 | φ75 | φ66 | 4.5 | 100-2500mm |
| φ75 | φ75 | φ60 | 7.5 | 100-3000mm |
| φ77 | φ77.4 | φ70 | 3.7 | 100-2500mm |
| φ80 | φ81.3 | φ73.7 | 3.8 | 100-2500mm |
| φ80 | φ80.2 | φ70 | 5.1 | 100-3000mm |
| φ80 | φ80 | φ64 | 8 | 100-3000mm |
| φ90 | φ90.5 | φ82.9 | 3.8 | 100-3000mm |
| φ90 | φ90.6 | φ75.6 | 7.5 | 100-3000mm |
| φ100 | φ100.5 | φ92.5 | 4 | 100-3000mm |
| φ100 | φ100.8 | φ89.80 | 5.5 | 100-3500mm |
| φ110 | φ111 | φ101.8 | 4.6 | 100-3500mm |
| φ120 | φ121.8 | φ111.8 | 5 | 100-4000mm |
| φ120 | φ120.4 | φ108.4 | 6 | 100-4000mm |
| φ130 | φ131 | φ120 | 5.5 | 100-4000mm |
| φ150 | φ151.5 | φ139.5 | 6 | 100-4000mm |
| φ150 | φ151.5 | φ135.5 | 8 | 100-4500mm |
| Φ162 | Φ162.5 | Φ146.5 | 8 | 100-4500mm |
| Φ172 | Φ172.2 | Φ156.2 | 8 | 100-5000mm |
| φ180 | φ180 | φ160 | 10 | 100-5000mm |
| φ200 | φ202 | φ186 | 8 | 100-6000mm |
| φ240 | φ240 | φ208 | 16 | 100-6000mm |
| Φ320 | Φ320 | Φ296 | 12 | 100-6000mm |
Functions:
1) Wide application
Aluminum Dead Shaft Idler Roller as an independent accessory, can
be designed from 22mm to 320mm, real size is according to clients'
practical need. It can be widely used in slitting, printing,
rewinding, coating, laminating, bag making, paper making
machines,ect.
2) Long use time and easy to maintance
We produce high-quality aluminum dead shaft idler roller, with
required surface treatment, even for screws, we only adopt high
quality aluminum and steel not cheap materials in the market.
3) Light in weight
The weight of the aluminum made roller is very light compared to
steel roller.
Application industries:
Chuangbo brand aluminum guide roller is high strength, low
resistance, light weight, flexible rotation, no-rusty, wearable and
corrosion resistance, especially suitable for printing, packaging,
plastics, paper, glass, pharmaceutical, electronics batteries,
textile machinery and industries.
