    Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

    Ask Lasest Price
    Brand Name : CBB
    Model Number : STO/STW 50
    Certification : CE
    Price : USD700/set
    Payment Terms : T/T, Western Union
    Supply Ability : 300 sets per month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    Pillow STO/STW 50kg 35mm 2800kg Steel Toe Chucks

    Pillow Type STO/STW 50 Steel Safety Chucks Loading 2800kg Safe Operte
    Introduction

    Standard safety chucks provide economic and easy to install, the design, and for the transmission links, such as frequent moves from the provision of fast,Security, and indeed simple and from the operation of the shaft. Moreover, the transmission part of the security chuck size can be based on customer specifications machinery.


    Product details

    SizeMaximum loadMaximum torqueStandard square bar sizeUnit Weight
    FLO/FLW STW/STO 28800 kg18 KGFM25/30 mm(22~30 mm avaiable)18 KG
    FLO/FLW STW/STO 351600 kg35 KGFM32/38 mm (30~4O mm avaiable)27 KG
    FLO/FLW STW/STO 502800 kg110 KGFM40/45/50 mm (40~50 mm avaiable)53 KG
    FLO/FLW STW/STO 757000 kg235 KGFM55/65/75 mm (50~80 mm avaiable)120 KG
    FLO/FLW STW/STO 9012000 kg1000 KGFM80~120 mm300 KG
    FLO/FLW STW/STO 12022000 kg2000 KGFM120~180 mm600 KG
    FLO/FLW STW/STO 18032000 kg2500 KGFM170~200 mm1000 KG
    FLO/FLW STW/STO 23064000 kg4100 KGFM170~230 mm1200 KG

    Model Type: STO/STW 50
    Maximum loadMaximum torqueSquare bar sizeWeight
    2800kg110 KGFM40~50MM53kg
    ApplicationPrinting machinery
    Bag making machinery
    Paper machinery
    Wire and cable machinery
    Roll of wire machinery
    Bundle bag machinery
    Textile machinery
    Weaving machinery
    Woodworking machinery
    Other machinery

    Features

    1. The safety chuck provides a fast, simple and safe coupling for the transmission and transmission parts with frequent movements.

    2 . The safety chuck is a quick-connecting device that is applied to the receiving and discharging reels to save time for the operator to load and unload.
    3. The dimensions of the safety chuck drive section can be designed and manufactured according to different mechanical specifications and characteristics

    4. Safety chuck is needed for frequent connection transmission and out of the work of action mechanism, provides a quick and accurate, easy and safe coupling


    Advantage


    1. Safe chuck will provide the machine and operator a safer working place, avoid the high speed shaft running outside of the machine.

    2. They provide for a quick change at the end of a production run (either winding or unwinding).Therefore, there is less down time during turn around and the more cost effective in operation.

    3. Structure of the safety chuck is reasonable, good rigidity, can withstand a greater torque, to eliminate the phenomenon of loose rotation.

    4. The use of special properties of super alloy steel materials, superior durability can make safety chuck life long.

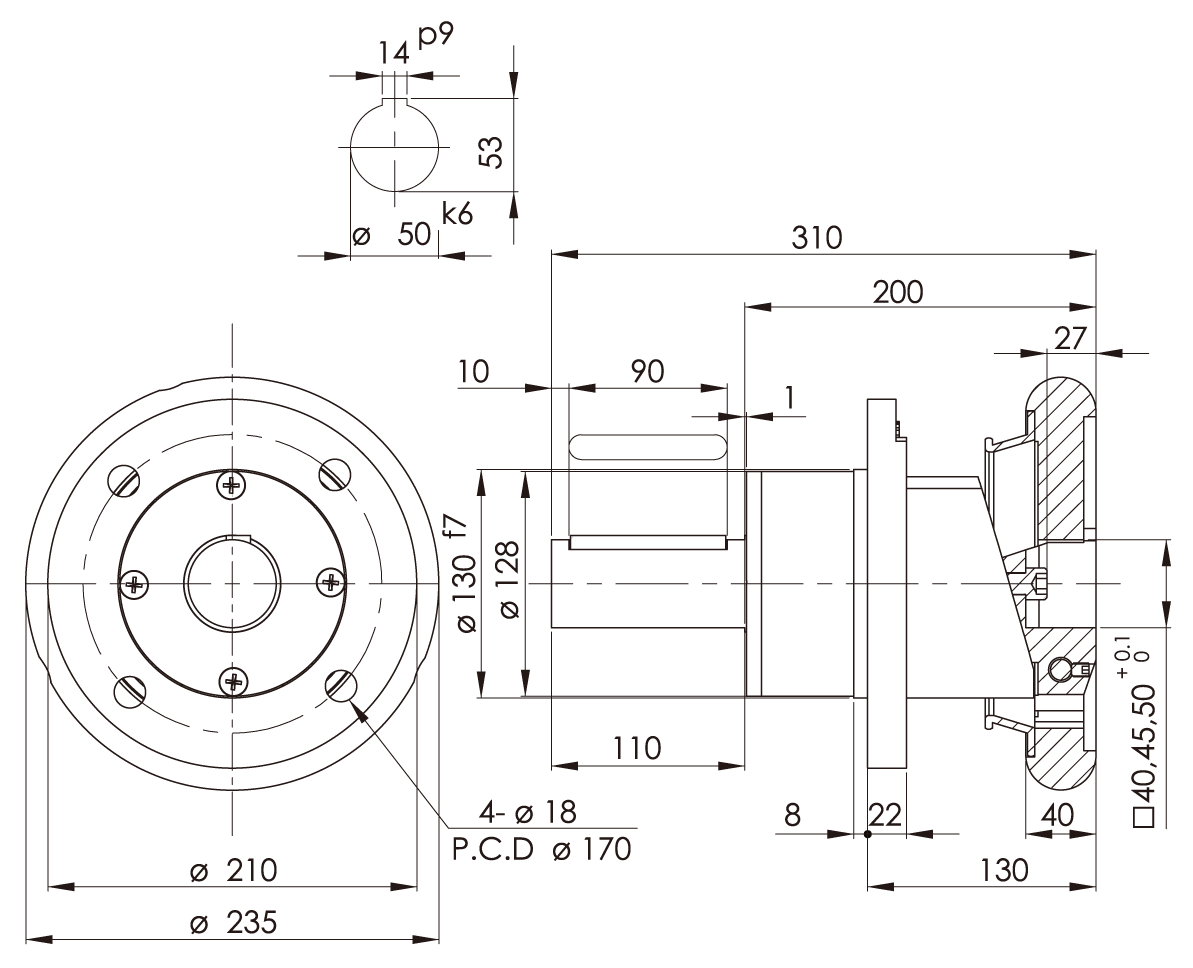

    Mount

    SIZEABCDE (f7)E-FH-GK
    Type 2861842825.30.150.51
    Type 35731853032.38.400.20.51.5
    Type 50811353240.45.500.30.52
    Type 751061664055.653750.40.53

    Countersink Information for Flange Mounted Type

    SIZEϕ Aϕ BCD
    FLO/W 281811157
    FLO/W 352013168
    FLO/W 5026182210.5
    FLO/W 752014278
