    7326909000 50 Loading 2800kg 110KGFM Safety Chuck

    Ask Lasest Price
    Brand Name : CBB
    Model Number : FLW/FLO 50
    Certification : CE
    Price : USD700/set
    Payment Terms : T/T, Western Union
    Supply Ability : 300 sets per month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    7326909000 50 Loading 2800kg 110KGFM Safety Chuck

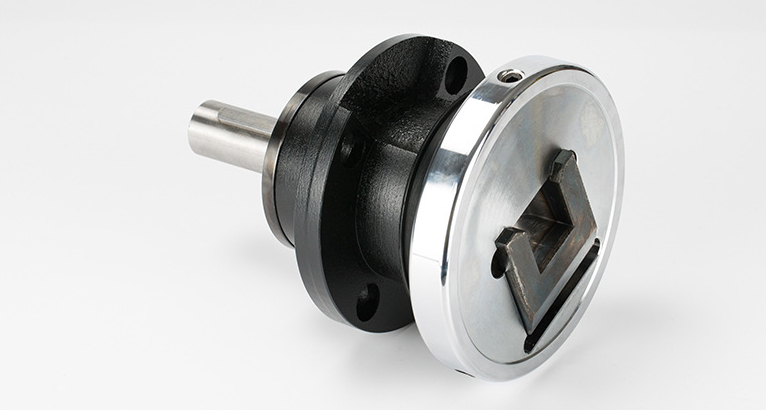

    Flange Type Steel Safety Chucks FLW/FLO 50 Loading 2800kg Fast Load And Unload
    Brief introduction

    Safety Chuck is for continuous action of the shaft (air shaft) to provide fast, accurate, simple, safe and effective connection device, to avoid shaft running loose or tighten, can improve work efficiency and guarantee the quality. Safety chuck could be flange-mounted or foot-mounted. It is widely used in printing, packaging, plastics, paper, glass, pharmaceutical, electronics batteries, textile machine and industrial.

    THE BIGGEST MODEL IS TYPE 230!


    Product details

    SizeMaximum loadMaximum torqueStandard square bar sizeUnit Weight
    FLO/FLW STW/STO 28800 kg18 KGFM25/30 mm(22~30 mm avaiable)18 KG
    FLO/FLW STW/STO 351600 kg35 KGFM32/38 mm (30~4O mm avaiable)27 KG
    FLO/FLW STW/STO 502800 kg110 KGFM40/45/50 mm (40~50 mm avaiable)53 KG
    FLO/FLW STW/STO 757000 kg235 KGFM55/65/75 mm (50~80 mm avaiable)120 KG
    FLO/FLW STW/STO 9012000 kg1000 KGFM80~120 mm300 KG
    FLO/FLW STW/STO 12022000 kg2000 KGFM120~180 mm600 KG
    FLO/FLW STW/STO 18032000 kg2500 KGFM170~200 mm1000 KG
    FLO/FLW STW/STO 23064000 kg4100 KGFM170~230 mm1200 KG

    Model Type: FLW/FLO 50
    Maximum loadMaximum torqueSquare bar sizeWeight
    2800kg110 KGFM40~50MM53kg
    ApplicationPrinting machinery
    Bag making machinery
    Paper machinery
    Wire and cable machinery
    Roll of wire machinery
    Bundle bag machinery
    Textile machinery
    Weaving machinery
    Woodworking machinery
    Other machinery

    Features

    1. Safety chuck is needed for frequent connection transmission and out of the work of action mechanism, provides a quick and accurate, easy and safe coupling

    2. Safety chuck can avoid shaft running loose or tighten, can improve work efficiency and guarantee the qulity
    3. Chuck's mount square is under special heat treatment process, greatly prolongs the service life
    4. Chuck's all critical dimensions for machining center, CNC machine should bed processing, ensure the accuracy of its positioning

    5. Safety Chuck - Dimensions can be customized


    Advantage

    1 Structure of the safety chuck is reasonable, good rigidity, can withstand a greater torque, to eliminate the phenomenon of loose rotation.

    2 The use of special properties of super alloy steel materials, superior durability can make safety chuck life long.

    3 Reasonable tolerance fit of bayonet parts ensures smooth and continuous torque transmission process, greatly enhancing the safety performance of machinery.

    4 Simple installation, suitable for continuous sliding or high frequency use, buffer starting, with soft starting characteristics.


    Mount

    SIZEABCDE (f7)E-FH-GK
    Type 2861842825.30.150.51
    Type 35731853032.38.400.20.51.5
    Type 50811353240.45.500.30.52
    Type 751061664055.653750.40.53

    Countersink Information for Flange Mounted Type

    SIZEϕ Aϕ BCD
    FLO/W 281811157
    FLO/W 352013168
    FLO/W 5026182210.5
    FLO/W 752014278
