FLW/FLO 35 Flange Mount Steel Safety Chucks 1600KG Max Load Safe Easy Operate
Brief introduction

Features

1. Safety chuck provide for a quick change at the end of a production run (either winding or unwinding).Therefore, there is less down time during turn around and the more cost effective in operation.

2 . Safety chuck provide a means of transmitting torque to the roll being wound / unwound. Torque in the form of a drive on the rewind end of the operation and torque from a brake on the unwind side.
3. Safety Chucks provide for concentricity between centreline, or axis, of the Safety Chuck and the center line of the Air Shaft. Less eccentricity between the Air Shaft and Safety Chuck results in less vibration and wear.

Application

1. Printing machinery
2. Bag making machinery
3. Paper machinery
4. Wire and cable machinery
5. Roll of wire machinery
6. Bundle bag machinery
7. Textile machinery
8. Weaving machinery
9. Woodworking machinery
10. Other machinery

Advantage

1 Structure of the safety chuck is reasonable, good rigidity, can withstand a greater torque, to eliminate the phenomenon of loose rotation.

2 The use of special properties of super alloy steel materials, superior durability can make safety chuck life long.

3 Reasonable tolerance fit of bayonet parts ensures smooth and continuous torque transmission process, greatly enhancing the safety performance of machinery.

4 Simple installation, suitable for continuous sliding or high frequency use, buffer starting, with soft starting characteristics.

Mount

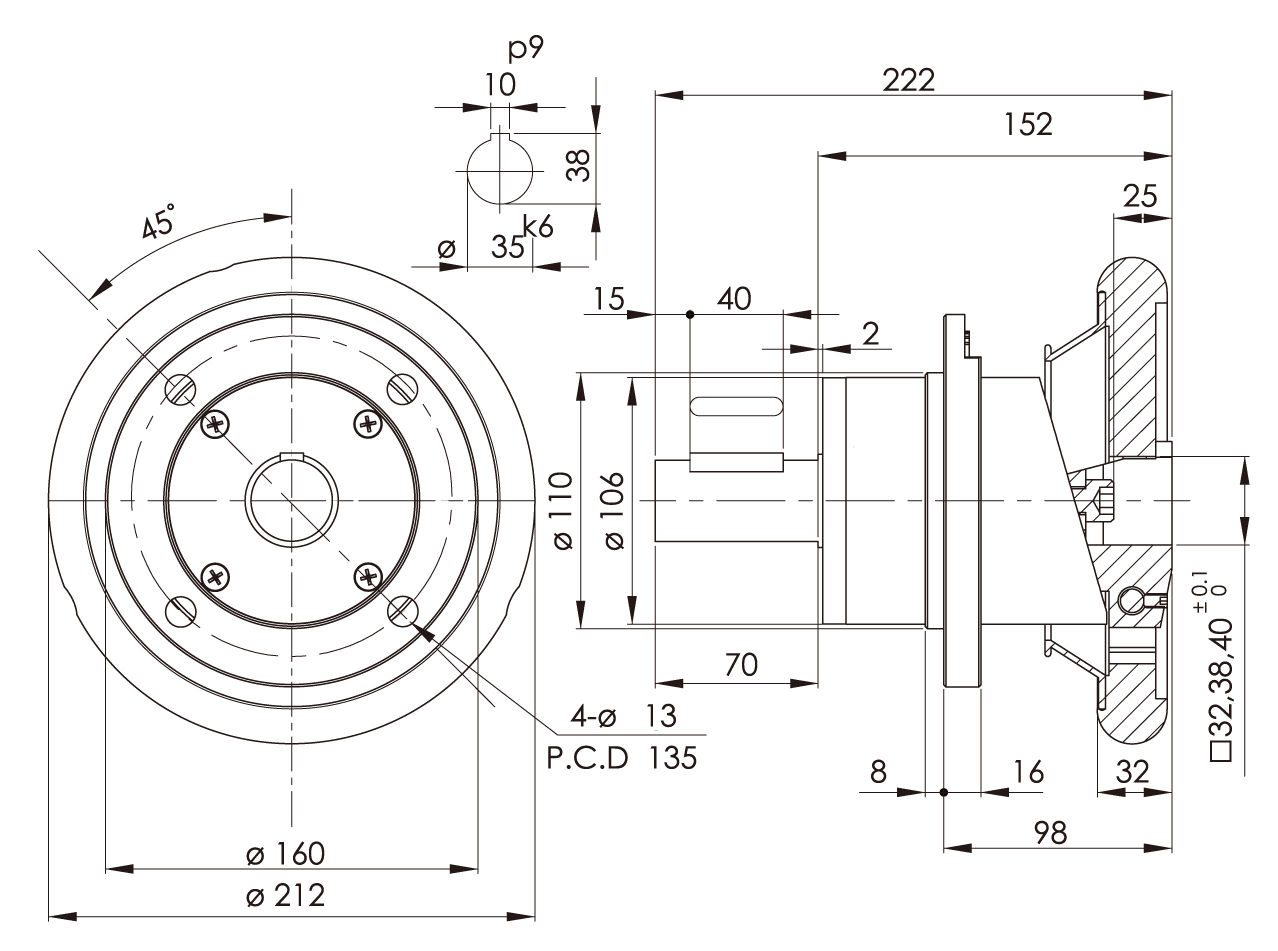

Countersink Information for Flange Mounted Type
