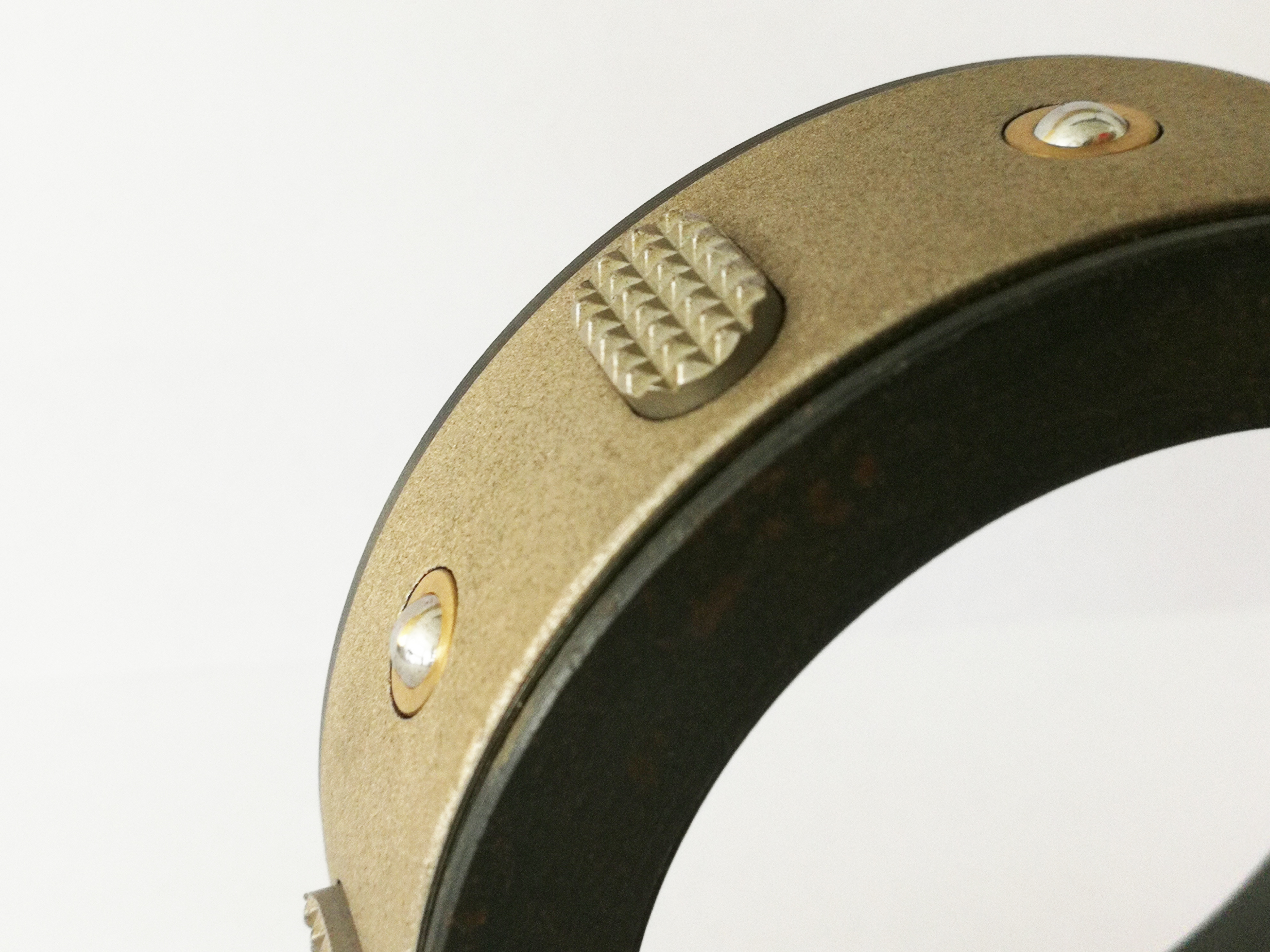

Chrome Coating With Sandblasting Key Type Differential Slip Ring
Bigger Tension
Introduction
Differential slip ring is main part of air differential shaft, the
differential shaft is composed of a plurality of differential
rings, and the friction torque of the differential ring is
controlled by the air pressure, so that the tension of the inner
roll to the outer roll will be constant. The shaft can make a neat
ends, and the material tension is constant.
Types and Specifications of our differential shaft ring
1) Ley type

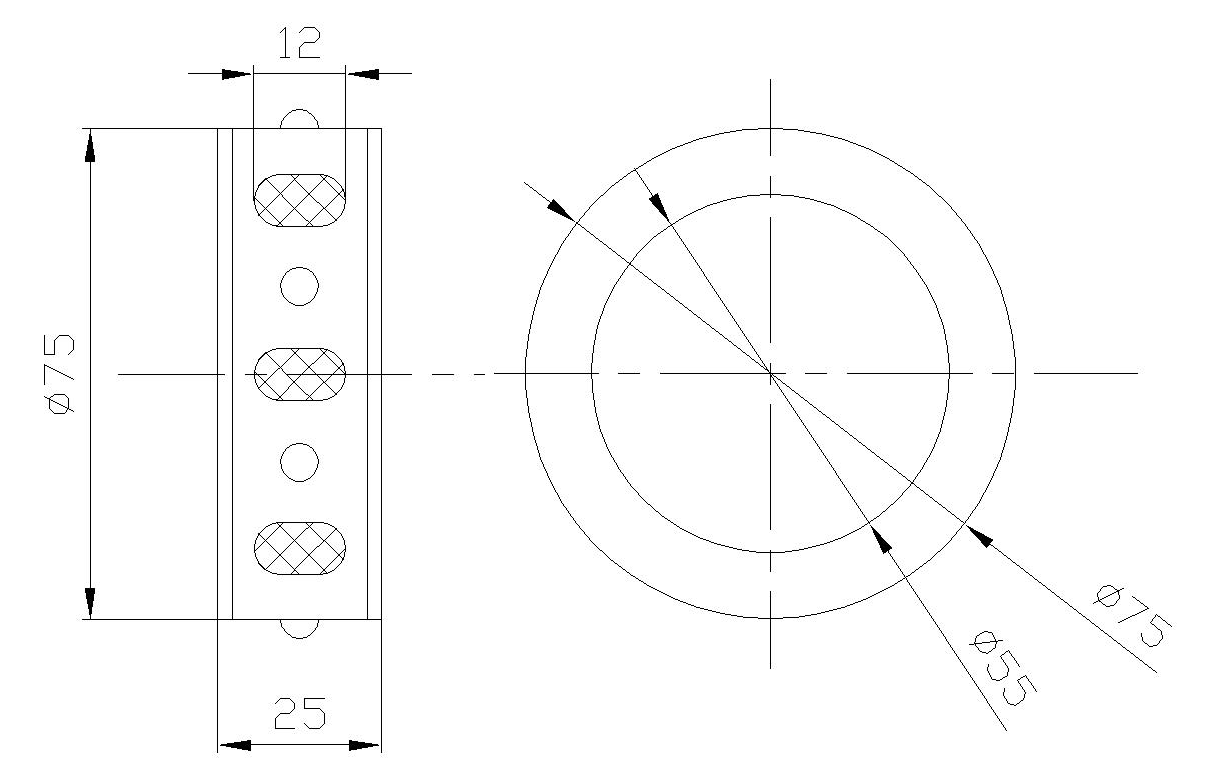

A. 3 inch
Outside: Φ75.5mm
The maximum working diameter: Φ78.0mm
Width: 15,20,25,30,35,40,50mm
Internal diameter: Φ45,Φ50,Φ55mm
B. 6 inch
Outside: Φ151.0mm
The maximum working diameter: Φ156.0mm
Width: 20,25,30,35,40,50mm
Internal diameter: Φ60,Φ75,Φ80mm
Components
- The differential slip ring is made of following parts
- Steel inside structure
- Steel round skinned outer ring
- Steel material keys
- Copper material small balls
- Springs
Advantages
| Speed | The use of differential shaft ring improves the speed of the
slitting machine |
| Automation | The use of differential shaft ring can reduce the difficulty of
winding |
| Economic benefit | Greatly improve the production, reduce the cost of production |
ApplicationDifferential shafts have been widely used in
plastic film (including electronics, capacitors, battery film,
plastic wrap, packaging, composite film);
metal foil (copper foil, aluminum foil, etc.);
paper roll;
PVC sheet material and so on .
Other special materials for winding and rewinding.
About CBB Ruian Chuangbo Machinery
Ruian Chuangbo Machinery Co., Ltd. established in 1995, is
specialized in manufacturing of machinery parts. The company has
advanced production level and scientific research equipment, the
products are matched with printing, packaging, plastics, paper,
textile, pharmaceutical machinery and other industries. The company
has been granted with independent import and export rights, the
products sold to allover the country and export to more than thirty
countries and regions, such as: India, Pakistan, Israel, Russia,
Spain and so on.
