Light Weight Cross Groove Aluminum Idler Roller Good Performance Balanced And Anodized

CBB brand aluminum guide roller is high strength, low resistance, light weight, flexible rotation, no-rusty, wearable and corrosion resistance, especially suitable for printing, packaging, plastics, paper, glass, pharmaceutical, electronics batteries, textile machinery and industries.

Advantage

• Aluminum alloy guide roller is best choice for low-inertia, low-tension applications, with dynamic balanced and small diameter bearings, idler roller will be free running performance, especially good for high speed gravure printing machine and flexo printing machine.
• Stable 6063 T6 and 6061 T6 material will ensure the stable quality of the aluminum alloy guide roller.
• The groove of the surface of the idler roller by the specially customized “U-shaped” lathe cutter can not scratch the film material when the tension on the high-speed machine is high, “wide groove” will protect the ultra-thin material.
• In the printing machines, there are a lot of chemicals and dust, proper quantity of aluminum guide rollers are with live shaft and with dead shaft can make the life of the bearings for the machines much longer
• Crossline can release the air of the web so make the high speed machine running more stable

Application:

• Diameter: 25-320mm
• Dynamic balance: <2g
• Surface gloss: Ra 0.8-Ra 6.4
• Treatment: Soft anodize HV300
• Groove: "V" shape or "U" shape groove

Type of Groove on surface

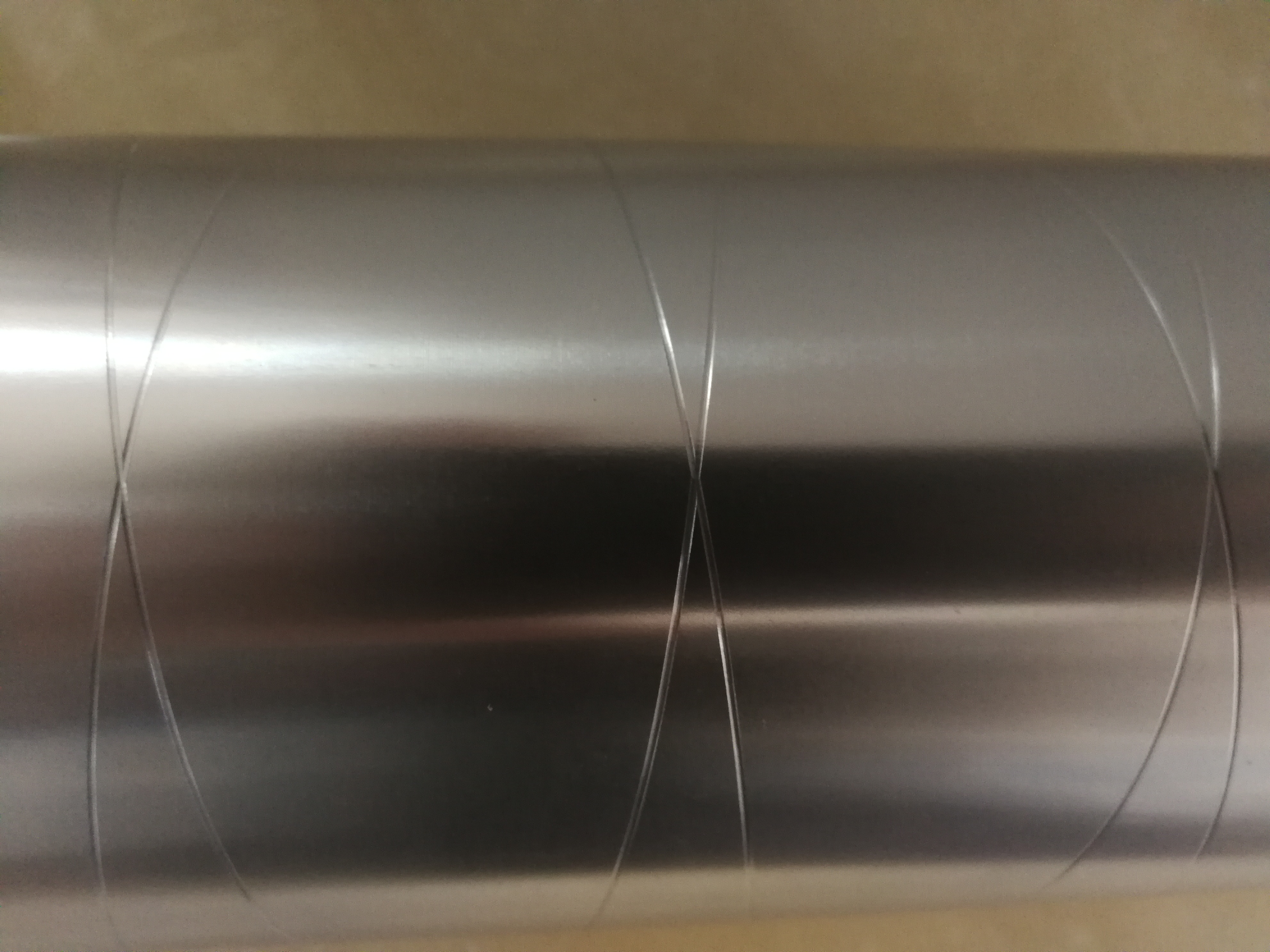

• Cross line

H are the normal sizes of the roller and customized is available too.
