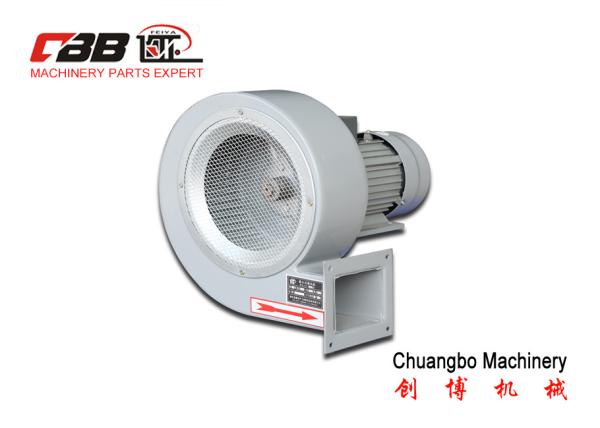

380V Input 370w Centrifugal Blower Fan DF-4 Counterclockwise Direction
Summary

DF series is a centrifugal type AC Blower fan, It has strong structure, Small size, light weight, rich wind, low noise, easy operation and with elegant appearance. It's mainly uses for ventilation in autocontrol, electronic equipment etc. It can also used for cooling in general place and air mold blowing or sky dancer.

Specification

Model: DF-4

Motor type: YS 7112

Rated voltage: 3 phase AC380V

Frequency: 50Hz

Rated current: 0.95A

Power: 370W

Speed: 2800rpm

Air flow: 660m3/h

Static pressure: 650Pa

Noise: ≤76Db

Direction: Clockwise and Counterclockwise (4 different direction optional)

Weight: 8.15kg

Other options of the blower

    Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts.

    The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. Our main products include aluminum guide roller series, curved roller series, air expand shaft series, centrifugal fan series, torque electric motor and controller series, frequency motor series, magnetic brake / clutch and tension controller serious , pneumatic diaphragm pump serious and so on.The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.

In 2015, the company was recognized as “Wenzhou Science and Technology (Innovative) Enterprise; in 2016, it was recognized as “Zhejiang Science and Technology SMEs”; in 2017, it was recognized as a scaled enterprise in Ruian; in 2018, it was recognized as “National High-Tech enterprise” and also awarded Wenzhou Technology R&D Center Enterprise; in 2019, company listed in Dutch Caribbean Securities.

    Company now is the member of the National Printing Machinery Standardization Technical Committee, and has 3 invention patents and 33 utility model patents.

    The company insists on the concept as "Branding Chuangbo, Satisfying customers and innovating constantly", implements ISO9001 standards and striving for excellence to ensure the product as leading ranks for domestic and international markets, provide the markets with stable quality, reasonable price, highly quality and newly competitive products. The company will continue to innovation to meet higher requirements and is willing to cooperate sincerely with all friends at home and abroad by high-quality products.
