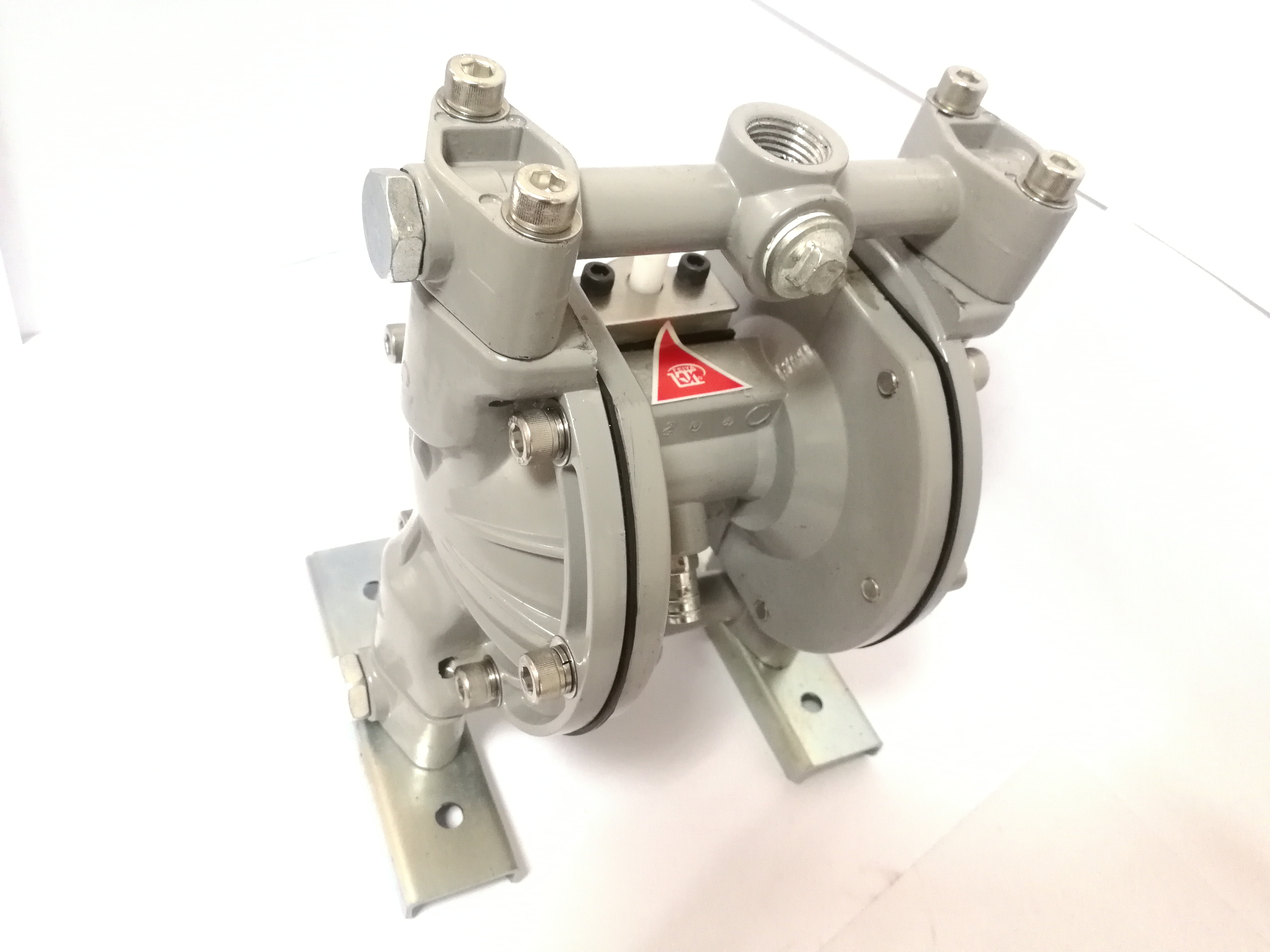

Printing Machine Use Ink Mixed Pneumatic Diaphragm Pump Double
Phase QDM-901
Brief introduction
QDM-901 double phase pneumatic diaphragm pump is a new type of conveying machinery, using compressed air as a power source for a variety of corrosive
liquid, liquid with particles, high viscosity, volatile, flammable,
poisonous liquid. The main feature of this pump is that without
irrigation water, can pumping liquid flow and some medium which is
easy flow, avoiding fire and explosion. This pump is suitable for water-based ink printing, four plate printing
machine, flexo and glue laminating machine. Widely used in pharmaceutical, sewage treatment, food, chemical,
automobile, paint and other industries.
Technical parameters
| Name | Model | Working Pressure | Max
Suction | Max
output
flow | Linking screws | State of the fluid |
| | | | | Ink Inlet | Ink Outlet | Air Inlet | |
| One-way Pneumatic Diaphragm Pump | QDM-902 | 0.25-0.6(Mpa) | 6M | 14L | G1/4" | G1/2"
G1/4" | G1/4" | Having
Pulse |
| Two-way Pneumatic Diaphragm Pump | QDM-901 | 0.12-0.8(Mpa) | 8M | 26L | G1/2" | G1/2" | G1/4" | Zero
Pulse
|
Principle
Double phase diaphragm pump QDM-901 takes the air as momentum which
compressed by air compressor. The needle valve adjust the air flow,
which drive the membrane, then the pump transport the liquid. The overall structure of the QDM-901 is more optimized, the pump
chamber and the main road are significantly strengthened, and the
selfpriming function and flow head are greatly improved. The main
feature of this pump is that without irrigation water, can pumping
liquid flow and some medium which is easy flow, avoiding fire and
explosion.
Characteristic
1. Using air as power, low gas consumption, medium flow regulation is stepless regulation.
Suitable for use in flammable and explosive environment.
2. Diaphragm is made of corrosion resistant material, can transport
a variety of corrosive medium.
3. Diaphragm Pump is small, light and easy to move. Low failure rate, easy to install and convenient maintenance.
4. The pump shell is made of high quality material, internal parts
are made of stainless steel and copper, of all those make the pump
light, beautiful, stainless and anticorrosive. The working life of
the pump is very long.
5. The pump can be used in many different industries.
Application
Printing industry
Chemical industry producing printing ink(water-based, oily)
solvent, ethanol, tuluol, acetone, dope and so on
Other industry need the safe pneumatic pump.
Installation
1 The pump must be mounted vertically, pay attention to the
direction of the arrow.
2 Connect hose to the ink port.
